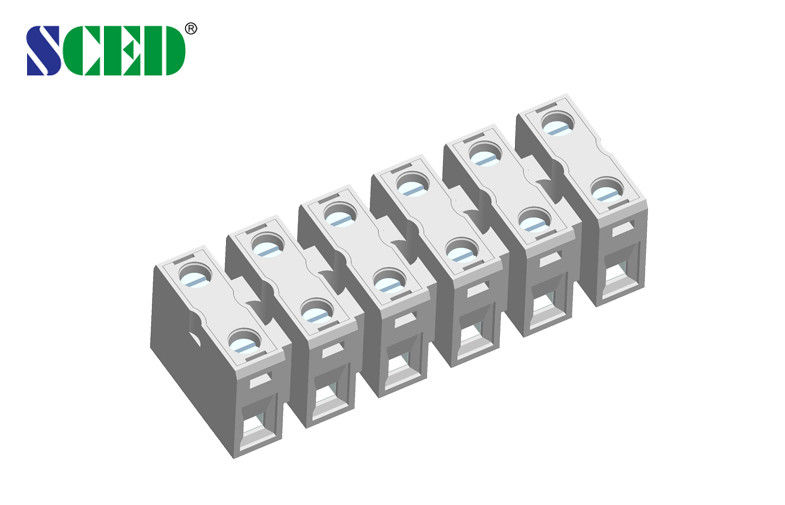

10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks

10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks

    • 10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks
    • 10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks
  • 10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-3N-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block Pitch: 10.00mm
    Number Of Contacts: 2P-16P Wire Range: 12-28
    Rated Voltage: 600V Rated Current: 20A
    Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

    10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks



    Applications:
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


    Details:


    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double levels;  □Triple levels
    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

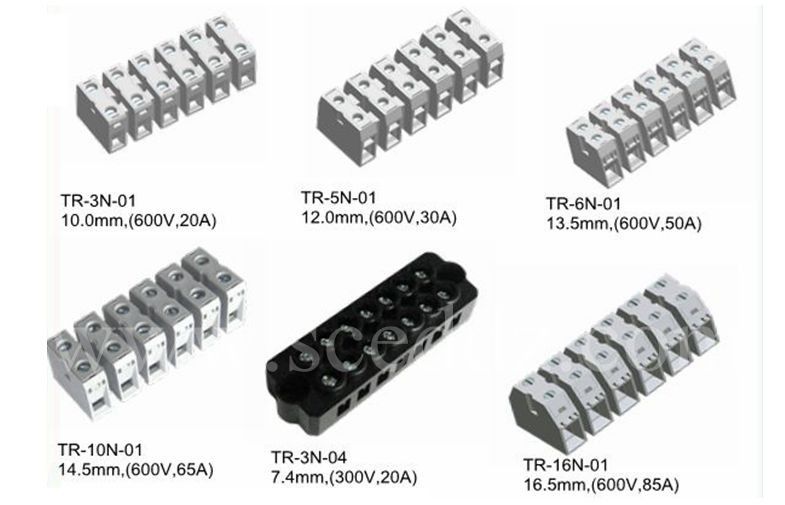

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

    How to order:
    10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks


    Parameter and Drawing Specifications:


    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 20

    600 / 20



    Wire Range                               AWG

    12-28

    12-28



    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    800 / 32

    1000 / 32

    1000 / 32

    Rated Surge Voltage                     KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    4

    Material



    Insulation Material / Inflammability Class

    PL/ UL94, V-0

    Conduction Board Plating

    Cooper/Nickel Plated

    Clamp Cage Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    5-6

    Screw / Torque                    / lbf.in

    M 3 / 4.4-5.3




    10.0mm PCB Mount Terminal Block 2 - 16 P Feed Through Electrical Terminal Blocks


    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
