3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block

3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block

    • 3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block
    • 3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block
  • 3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP381H-01V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Wire Inlet: Right Angle Wire Inlet Applications: PCB, Frequency Converters, Etc。
    Color: Green Number Of Contacts: Any Poles Available
    Pitch: 3.81mm Rated Current: 8A
    Rated Voltage: 300V Type: Plug In Terminal Blocks,Pluggable Terminal Blocks
    Key Words: Female Terminal Blocks Material: PA66

    3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
    Elevator, etc..

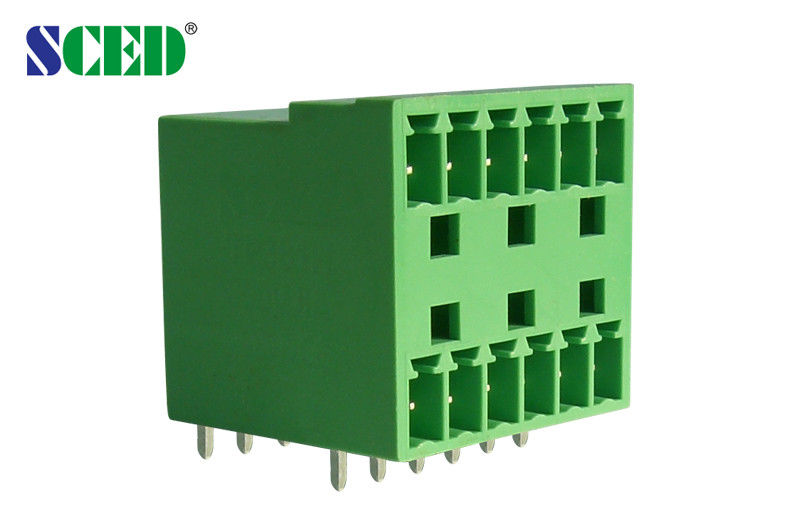

    Description:
    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    □Single Level;  ■Double Levels;  □Triple Levels

    This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03,

    TP381P-04

    Standard color: Green. Other colors also available, please refer to below How to Order and select the

    color
    you want.

    Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




    How to order:
    3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 8





    IEC Technical Data







    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 8

    160/8

    320/8

    Rated Surge Voltage                   KV

    2.5

    2.5

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter                    mm

                     1.2

    Pin Dimension                            mm

                   0.8 x 0.8


    3.81mm 300v Male Plug In Terminal Block Connectors Electric Terminal Block


    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
