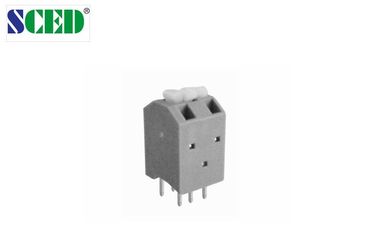

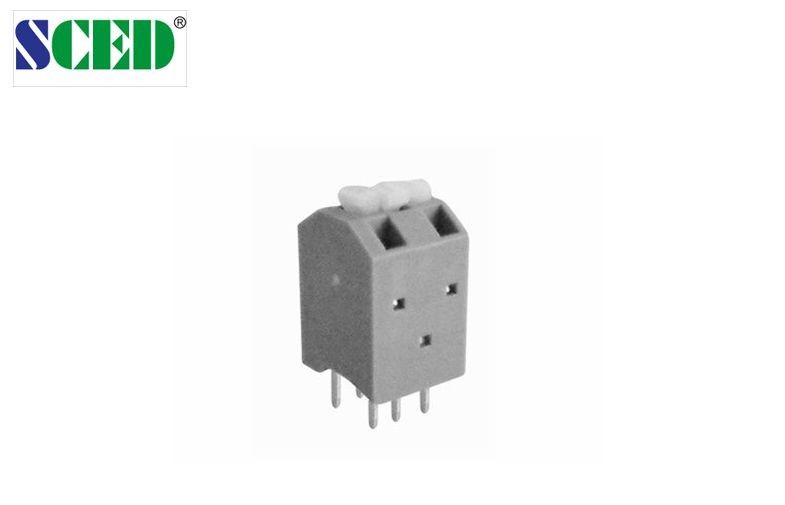

2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

    • 2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic
    • 2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic
  • 2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ254-04

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Spring Terminal Block,Screwless Terminal Blocks, Electrical Terminal Blocks Pitch: 2.54mm
    Number Of Contacts: 3P Wire Range: 18-28 AWG
    Rated Voltage: 150V Rated Current: 5A
    Color: Grey Applications: PCB, Etc.
    Material: PA66 Terminal: Phosphor Bronze



    2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic



    □Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

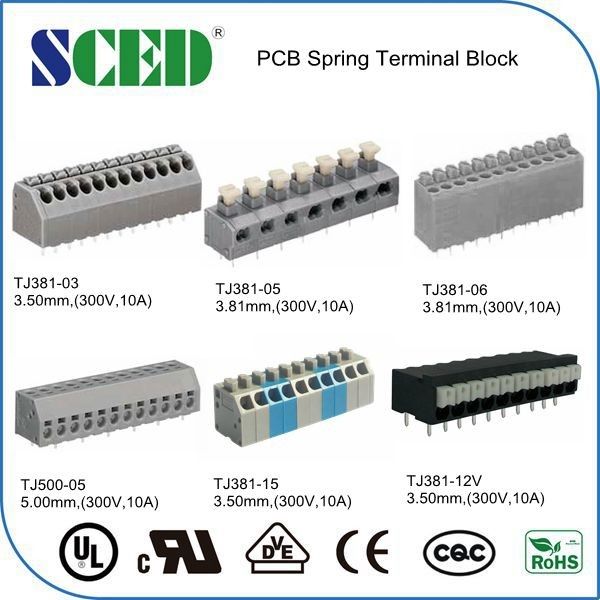

    Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory




    How to order:
    2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
    Military, Elevator, etc..


    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    150/5



    300/5

    Wire Range                                 AWG

    18-28



    18-28

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    160 / 5

    250 / 5

    400 / 5

    Rated Surge Voltage                     KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.0

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring / Plating

    Stainless Steel / -

    Terminal / Plating

    Phosphor Bronze / Tin Plated

    Other Data



    PCB Hole Diameter                       mm

    φ1.2

    Stripping Length                           mm

    8-9





    2.54mm Spring Terminal Connector Phosphor Bronze 3 Pin Electronic



    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
