Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A

Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A

    • Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A
    • Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A
  • Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Spring Terminal Block,Screwless Terminal Blocks, Electrical Terminal Blocks Pitch: 3.50mm
    Number Of Contacts: 2P-28P Wire Range: 14-26(sol) 16-26(str)
    Rated Voltage: 300V Rated Current: 10A
    Color: Grey And Blue Applications: PCB, Frequency Converters
    Material: PA66 Terminal: Brass

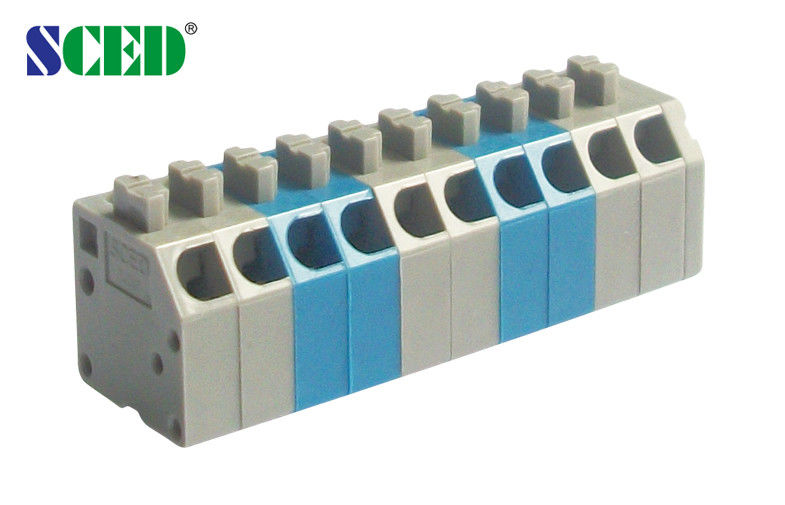

    Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A



    □Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

    Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory




    How to order:
    Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
    Military, Elevator, etc..


    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10



    300/10

    Wire Range                       AWG

    14-26(sol) 16-26(str)



    14-26(sol) 16-26(str)

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    125 / 10

    250 / 10

    320 / 10

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring / Plating

    Stainless Steel / -

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.2

    Stripping Length                    mm

    8-9





    Durable High Voltage Screwless Spring Clamp Terminal Block 300v 10A



    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
