Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE |
Model Number: | TJ508-01 |
Minimum Order Quantity: | 600 |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-21 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Applications: | PCB, Frequency Converters, Server Site, Etc. | Color: | Green |
---|---|---|---|
Number Of Contacts: | 2P-24P | Pitch: | 5.08mm |
Rated Current: | 10A | Rated Voltage: | 300V |
Wire Range: | 12-26 Awg | Key Words: | Pcb Terminal Block |
High Light: | pcb screw terminal blocks,pcb terminal block connectors |
Right Angle Wiring PCB Terminal Block For Frequency Converters
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

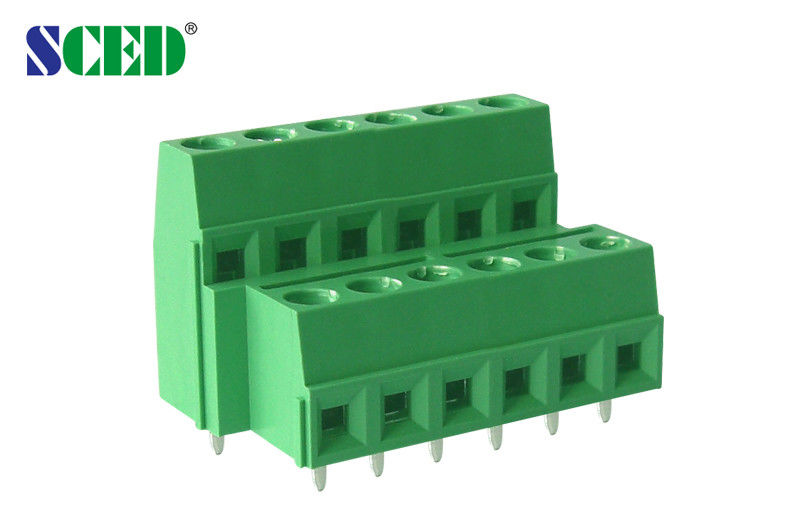

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

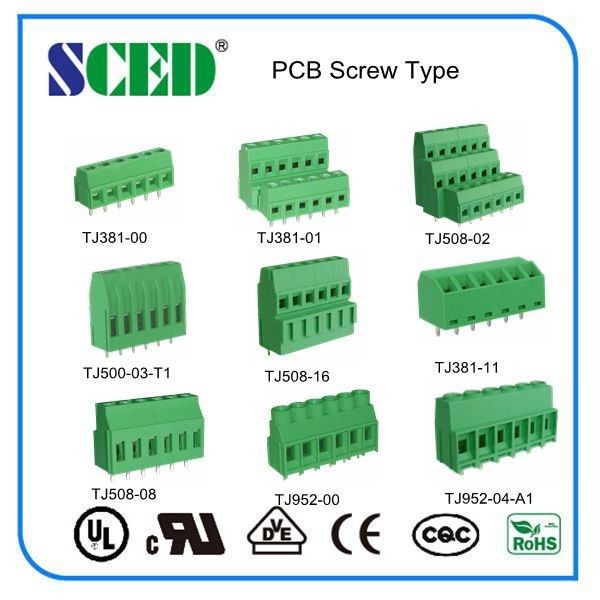

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer
How to order:
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300 / 10 |
|
300 / 10 |
Wire Range AWG |
12-26 |
|
12-26 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
Rated Surge Voltage KV |
4 |
4 |
4 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Terminal / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.4 |
||
Stripping Length mm |
6-7 |
||
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
Competitive Advantage:
We can supply Stable good quality and Competitive price
Also support quickly response and full range products for selection
And flexible to design the exact part per customers’ demand
Detail photo
Contact Person: Martin Liang
Tel: +8613902441660
Fax: +86-755-28769522
