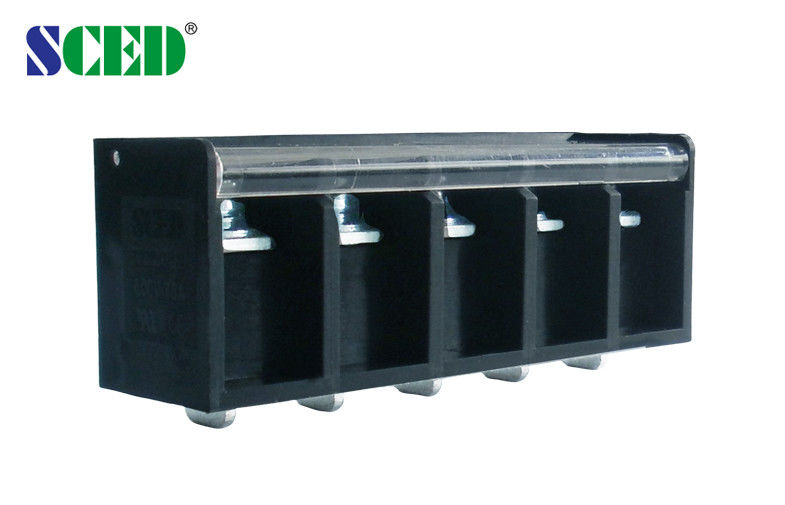

20mm Power Distribution Terminal Block Barrier Type Terminal Block With Plastic Protective Cover

20mm Power Distribution Terminal Block Barrier Type Terminal Block With Plastic Protective Cover

20mm Power Distribution Terminal Block Barrier Type Terminal Block With Plastic Protective Cover

Product Details:

Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TB2000-01-C

Payment & Shipping Terms:

Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.244-0.488 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 20mm Voltage: 600V
Pole: 2-14 Poles Current: 75A
Screw: M6 Plastic: PBT
Inflammability Class: UL94-V0 Plating: Tin Plated
Terminal: Brass Color: Black



20mm Power Distribution Terminal Block Barrier Type Terminal Block With Plastic Protective Cover



Detailed product Description:



Pitch 20.00mm, 600V 75A, 2-14P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet

■Single Level

Standard color: Black.

Other colors also available.



Applications:



Normally, it can be used in the fileds of PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 75

600 / 75

600 / 5

Wire Range                       AWG

26-4

26-4

26-4

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

1000 / 75

1000 / 75

1000 / 75

Rated Surge Voltage                 KV

12

12

12

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

2.4x10.4

Stripping Length                    mm

16-18

Screw / Torque                    / lbf.in

M6 / 18-22



Competitive Advantage:



We have 12 years of experience in designing, manufacturing and marketing terminal blocks. We have 10 main series and more than 1000 models for selection. Products have gained CE, UL, CUL, CQC and VDE etc. Stable good quality products with reasonable price can be provided.
