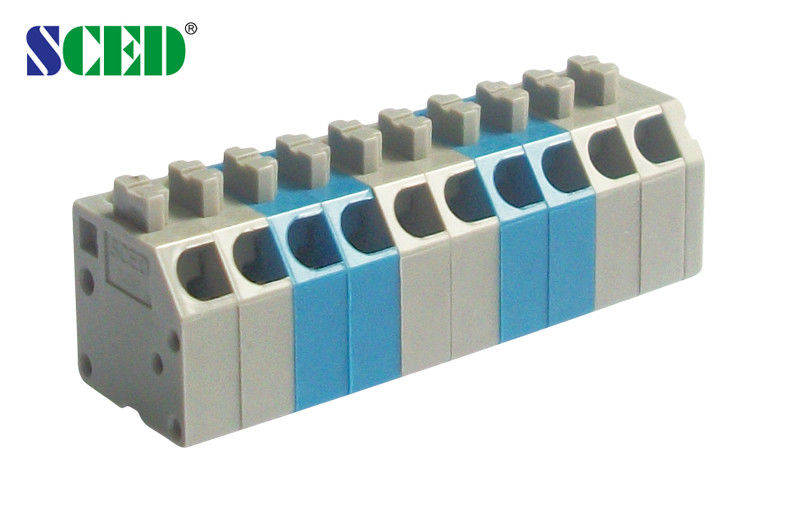

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P

Product Details:

Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TJ381-15

Payment & Shipping Terms:

Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.034-0.068 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Type: Spring Type Color: Grey And Blue
Pitch: 3.5mm Current: 10A
Voltage: 300V Plastic: PA66
Terminal: Brass Plating: Nickel Plated
Rated Surge Voltage: No Abnormal Within 1 Minute Insulation Resistance: Above DC500V, 500MΩ



45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P



Detailed product Description:



Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, screwless terminal blocks

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey.

Other colors also available, such as Blue, Yellow, Black, Grey and White and so on.



Applications:



Our terminal blocks can be used in a lot of fileds, such as:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply Electric Lighting

2. Industry Control, Automation, Rail Transportation, Communication, Electric Power

3.Security, Medicine Equipment, Military, Elevator and so on.



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

14-26(sol) 16-26(str)



14-26(sol) 16-26(str)

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

125 / 10

250 / 10

320 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

8-9



Competitive Advantage:



1. Flexible to design the exact part per customers' demand

2. Stable good quality with competitive price

3. Quick response

4. more than 1000 models for selection.
