Pitch 3.5mm 3.81mm PCB Screw Terminal Block Brass Terminal Green Rail Transportation

Pitch 3.5mm 3.81mm PCB Screw Terminal Block Brass Terminal Green Rail Transportation

    • Pitch 3.5mm 3.81mm PCB Screw Terminal Block Brass Terminal Green Rail Transportation
    • Pitch 3.5mm 3.81mm PCB Screw Terminal Block Brass Terminal Green Rail Transportation
  • Pitch 3.5mm 3.81mm PCB Screw Terminal Block Brass Terminal Green Rail Transportation

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Number Of Contacts: 2P-28P Pitch: 3.81mm
    Rated Current: 10A Rated Voltage: 300V
    Wire Range: 16-24 Awg Type: PCB Terminal Block,PCB Screw Terminal Blocks, PCB Screw Terminal Blocks

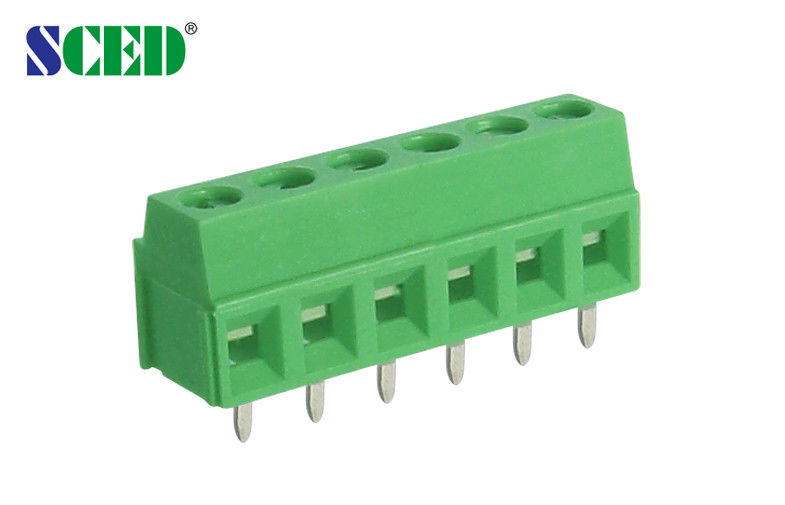

    Pitch 3.81mm PCB Terminal Block Screw Type 10Amp 2 Pin - 28 Pin







    Applications:



    PCB, Frequency Converters, Server Site, Switch,

    Power Supply, Electric Lighting, Industry Control,

    Automation, Rail Transportation, Communication, Electric Power,

    Security, Medicine Equipment, Military, Elevator, etc..



    Spec.



    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you

    want.



    How to order:

    Pitch 3.5mm 3.81mm PCB Screw Terminal Block Brass Terminal Green Rail Transportation

    TAG:



    PCB mount terminal blocks , PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
    blocks, terminal block manufacturer

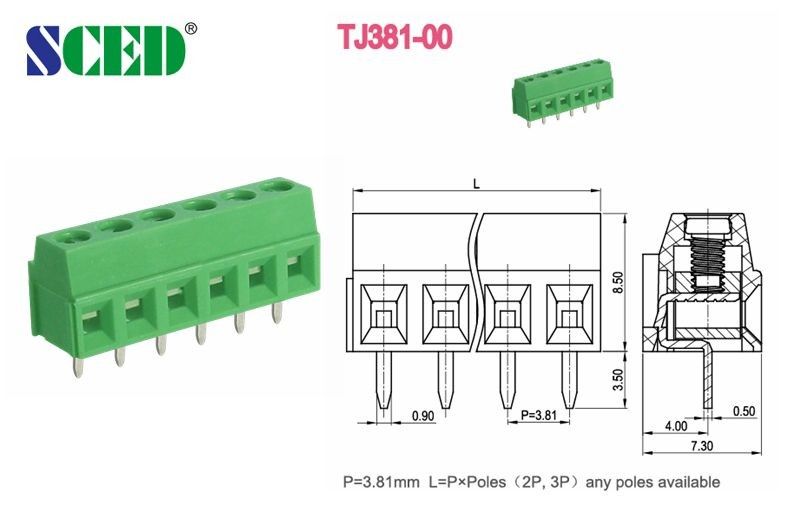

    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 10





    Wire Range                       AWG

    16-24





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.0

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                 mm

    φ1.3

    Stripping Length                    mm

    4-5

    Screw / Torque                    / lbf.in

    M2 / 1.8-2.0





    Pitch 3.5mm 3.81mm PCB Screw Terminal Block Brass Terminal Green Rail Transportation





    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
