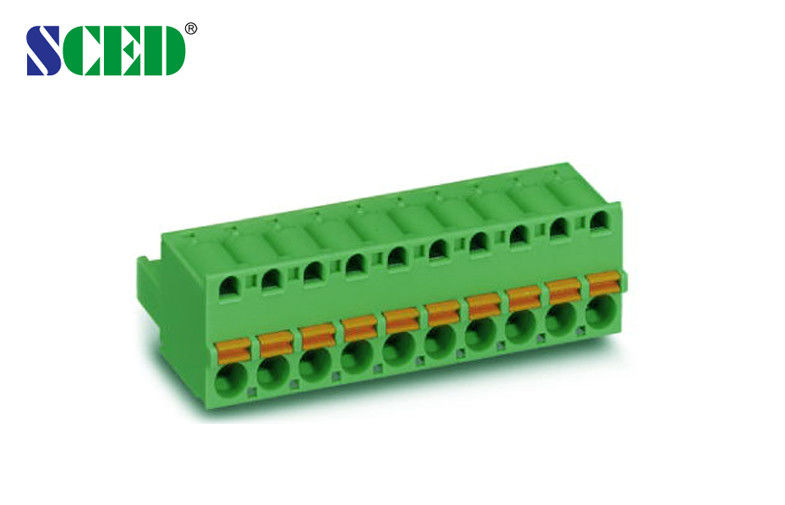

Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing

Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing

    • Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing
  • Brass Electrical Terminal Blocks Pitch 5.08mm 300V 18A Plastic Housing

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC,VDE etc.
    Model Number: TP508P-07

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.024-0.068
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Green Type: Female Part
    Pitch: 5.08mm Current: 18A
    Voltage: 300V Plastic: PA66
    Contactor: Brass Pole: 2-20 Poles
    Inflammability Class: UL94, V-0 Insulation Resistance: Above DC500V, 500MΩ
    High Light:

    pluggable terminal block connector

    ,

    plug in terminal block

    Brass Pluggable Terminal Block Pitch 5.08mm 300V 18A Plastic Housing



    Detailed product Description:



    Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    ■Single Level;  □Double Levels;  □Triple Levels



    This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06.



    Standard color: Green. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/18



    300/18

    Wire Range                       AWG

    12-30



    12-30

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 18

    320 / 18

    630 / 18

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Stainless Steel / -

    Contactor / Plating

    Brass / Tin Plated

    Other Data



    Stripping Length                    mm

    10



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
