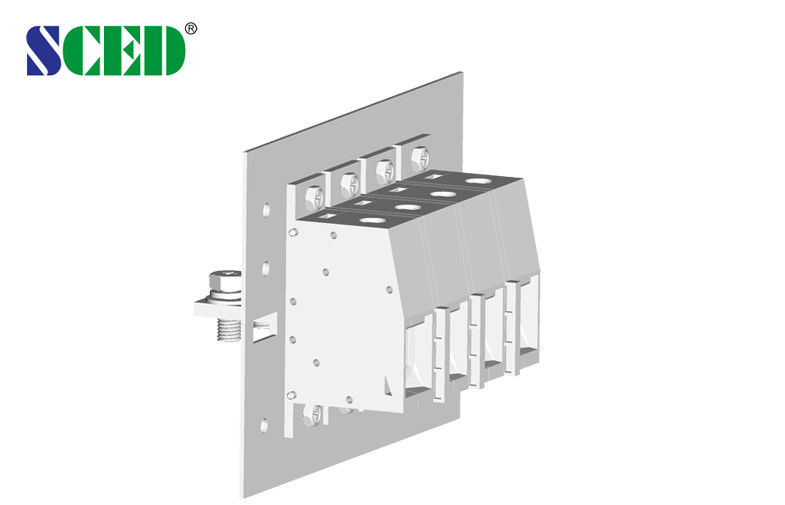

600V/150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle

600V/150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle

600V/150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle

Product Details:

Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE, UL, CUL, CQC, VDE etc.
Model Number: TR-50N-02

Payment & Shipping Terms:

Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.864-1.628 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Pitch: 18.8mm Current: 150A
Voltage: 600V Color: Grey
Screw: M3 Contact Resistance: Less Than 8mΩ
Rated Surge Voltage: No Abnormal Within 1 Minute Inflammability Class: UL94, V-0
Insulation Resistance: Above DC500V, 500MΩ Pole: 2-24 Poles

600V/150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle



Detailed product Description:



Pitch 18.8mm, 600V 150A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 150



600 / 5

Wire Range                       AWG

6-1/0



6-1/0

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

830 / 150

1000 / 150

1000 / 150

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

50

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

24

Screw / Torque                    / lbf.in

M6 / 38-40



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand600V/150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle
