Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

Product Details:

Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TR-4N-02

Payment & Shipping Terms:

Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.081-0.162 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Detailed Product Description
Color: Grey Current: 30A
Voltage: 300V Wire Inlet: Right Angle
Pitch: 6.2mm Rated Surge Voltage: No Abnormal Within 1 Minute
Contact Resistance: Less Than 8mΩ Inflammability Class: UL94, V-0
Insulation Resistance: Above DC500V, 500MΩ Screw: M3

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors



Detailed product Description:

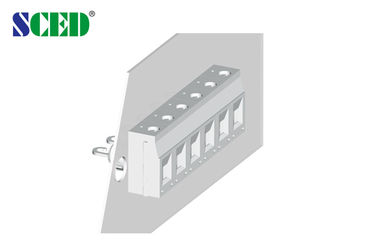

Pitch 6.2mm, 300V 15A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30



300 / 10

Wire Range                       AWG

10-30



10-30

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 / 32

630 / 32

1000 / 32

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

8

Screw / Torque                    / lbf.in

M3 / 5.3-7



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors
