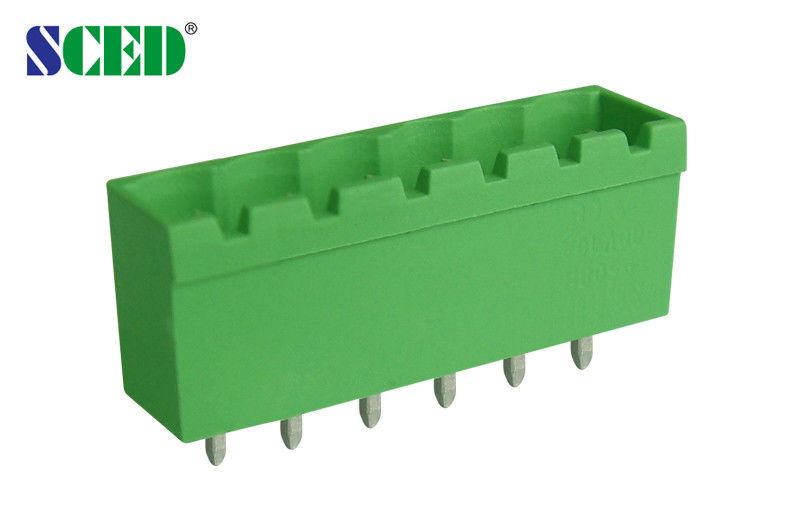

Pitch 5.08mm Plug In Terminal Block 2-24 Poles Green Plastic Male Part

Pitch 5.08mm Plug In Terminal Block 2-24 Poles Green Plastic Male Part

    • Pitch 5.08mm Plug In Terminal Block 2-24 Poles Green Plastic Male Part
    • Pitch 5.08mm Plug In Terminal Block 2-24 Poles Green Plastic Male Part
  • Pitch 5.08mm Plug In Terminal Block 2-24 Poles Green Plastic Male Part

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC,VDE etc.
    Model Number: TP508H-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.016-0.032 per pcs
    Packaging Details: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Green Pitch: 5.08mm
    Poles: 2-24 Poles Current: 300V
    Volt: 18A Plastic: PA66
    Terminal: Brass Inflammability Class: UL94-V0
    Plating: Tin Plated Rated Surge Voltage: 4 KV

    Pitch 5.08mm Pluggable Terminal Block 2-24 Poles Green Plastic Male Part



    Pitch 5.08mm Plug In Terminal Block 2-24 Poles Green Plastic Male Part



    Detailed product Description:



    Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



    □Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double Levels;  □Triple Levels



    This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07



    Standard color: Green. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 18





    Wire Range                       AWG







    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 18

    400 / 18

    500 / 18

    Rated Surge Voltage                 KV

    4

    4

    4

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Other Data



    PCB Hole Diameter               mm

    φ1.4

    PinDimension                     mm

    1.0 x 1.0



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
