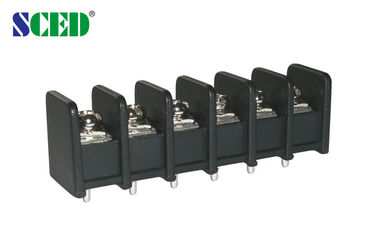

Center Spacing 8.25mm Pcb Terminal Blocks PBT UL94-V0 Brass

Center Spacing 8.25mm Pcb Terminal Blocks PBT UL94-V0 Brass

    • Center Spacing 8.25mm Pcb Terminal Blocks PBT UL94-V0 Brass
  • Center Spacing 8.25mm Pcb Terminal Blocks PBT UL94-V0 Brass

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC,VDE etc.
    Model Number: TB825-01-D1

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.047-0.094 per pcs
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 8.25mm Volt: 20A
    Current: 300V Plastic: PBT
    Inflammability Class: UL94-V0 Terminal: PBT
    Stripping Length: 6-7mm Type: Barrier
    Color: Black Wire Range: 12-26 AWG
    High Light:

    electrical terminal block

    ,

    barrier type terminal block

    Center Spacing 8.25mm Barrier Terminal Block PBT UL94-V0 Brass





    Detailed product Description:



    Pitch 8.255mm, 300V 20A, 2P-32P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Black. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 20



    300 / 10

    Wire Range                       AWG

    12-26



    12-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    320 / 24

    400 / 32

    630 / 32

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    4

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.6

    Stripping Length                    mm

    6-7

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demandCenter Spacing 8.25mm Pcb Terminal Blocks PBT UL94-V0 Brass 0
