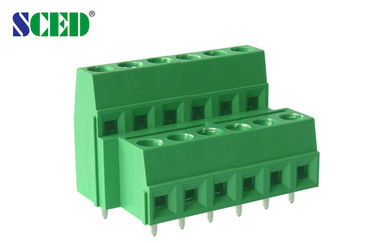

Double Levels PCB Terminal Block Green 5.08mm 10A Plastic Nickel Plated

Double Levels PCB Terminal Block Green 5.08mm 10A Plastic Nickel Plated

    • Double Levels PCB Terminal Block Green 5.08mm 10A Plastic Nickel Plated
  • Double Levels PCB Terminal Block Green 5.08mm 10A Plastic Nickel Plated

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC,VDE etc.
    Model Number: TJ508-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.061-0.122
    Packaging Details: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Green Pitch: 5.08mm
    Plastic: PA66 Volt: 300V
    Current: 10A Poles: Any Poles Available
    Inflammability Class: UL94-V0 Terminal: Brass
    Plating: Nickel Plated Stripping Length: 6-7mm
    High Light:

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

    Double Levels PCB Terminal Block Green 5.08mm 300V 10A Plastic PA66



    Detailed product Description:



    Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    □Single Deck;  ■Double decks;  □Triple decks

    Standard color: Green. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10



    300/10

    Wire Range                       AWG

    12-26



    12-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 10

    400 / 10

    630 / 10

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.4

    Stripping Length                    mm

    6-7

    Screw / Torque                    / lbf.in

    M3 / 4.4-5.3



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
