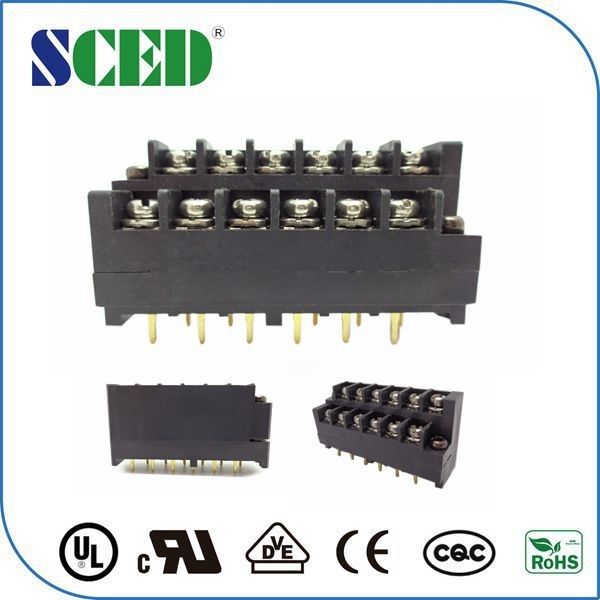

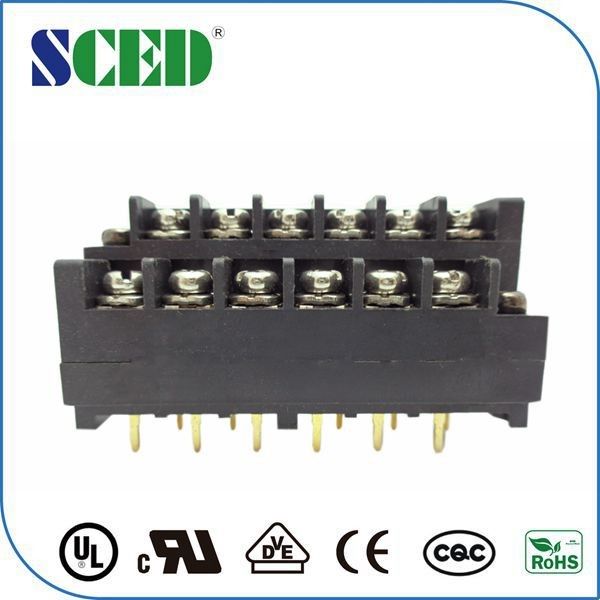

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

    • Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
    • Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
  • Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-07

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Levels: Double Levels Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
    Number Of Contacts: 2P-22P Pitch: 7.62mm
    Rated Current: 15A Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks



    Connector 7.62mm Barrier Terminal Block Power Supply Two Level Screw Clamp





    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 15



    300 / 10

    Wire Range                       AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Phosphor Bronze/ Gold Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.5

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    TB762-07



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:

     Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Tag:

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors



    Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw ClampConnector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
