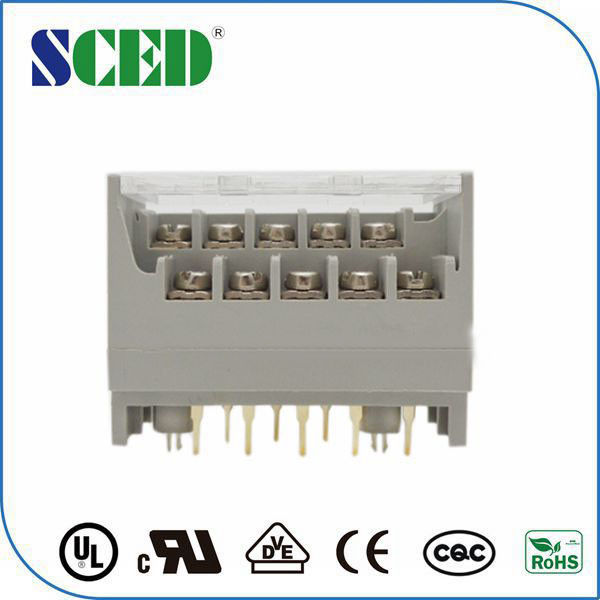

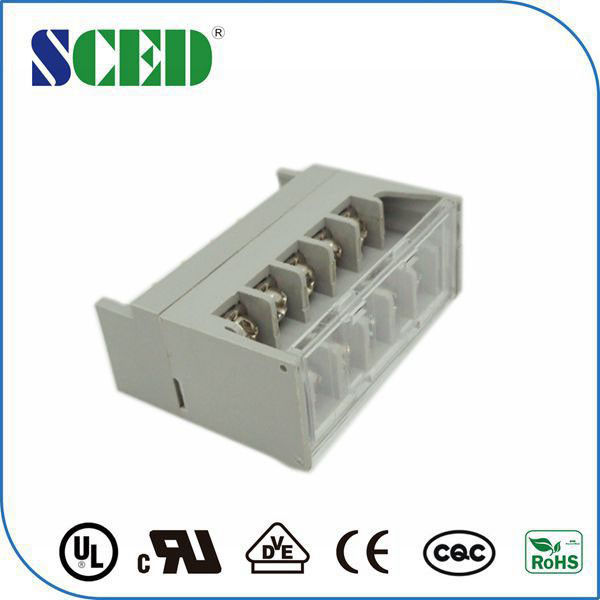

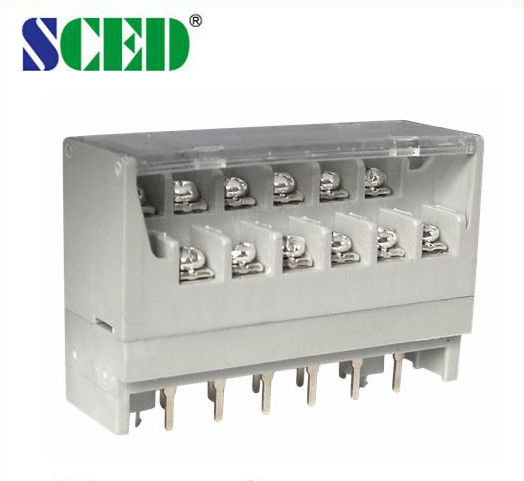

With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing

With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing

    • With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing
    • With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing
    • With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing
  • With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-09

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Number Of Contacts: 2P-22P
    Pitch: 7.62mm Rated Current: 10A / 15A
    Rated Voltage: 300V Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
    Material: PBT Screw: Steel M3



    With Cover Dual Row Barrier Terminal Block M3 Brass Terminal 7.62mm Spacing





    Parameter and Drawing Specifications:





    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 15



    300 / 10

    Wire Range                       AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Phosphor Bronze/ Gold Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.5

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7

    With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing

    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



     With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing





    Applications:





    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

     With Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm SpacingWith Cover Dual Row Electrical Terminal Block M3 Brass Terminal 7.62mm Spacing
