Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips

Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips

    • Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips
    • Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips
    • Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips
  • Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-04-GY

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Levels: Double Levels Wire Inlet: Right Angle Wire Inlet
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
    Number Of Contacts: 4*2P - 20*2P Pitch: 7.62mm
    Rated Current: 15A Rated Voltage: 300V
    Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 14-22





    Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips



    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

    Military, Elevator, etc..





    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand





    Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V



    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    □Single Level;  ■Double levels;  □Triple levels

    Standard color: Grey. Other colors also available, please refer to below How to Order and select

    the color you want.

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers



    How to order:

    Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips



    Parameter and Drawing Specifications:



    UL Technical Data

    B          C          D

    Rated Voltage / Current              V/A

       300 / 15                  300 / 10

    Wire Range                       AWG

        14-22                    14-22

    IEC Technical Data



    Overvoltage Category

           Ⅲ         Ⅲ         Ⅱ

    Contamination Class

     3          2          2

    Rated Voltage / Current              V/A

      250 / 24      320 / 24       400 / 24

    Rated Surge Voltage                 KV

           4          4           4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

                  φ1.5

    Stripping Length                    mm

                   7-8

    Screw / Torque                    / lbf.in

                M 3/ 5-7

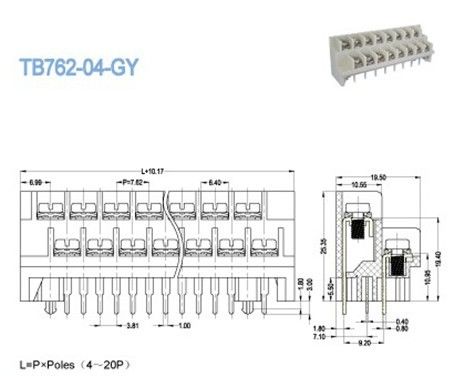

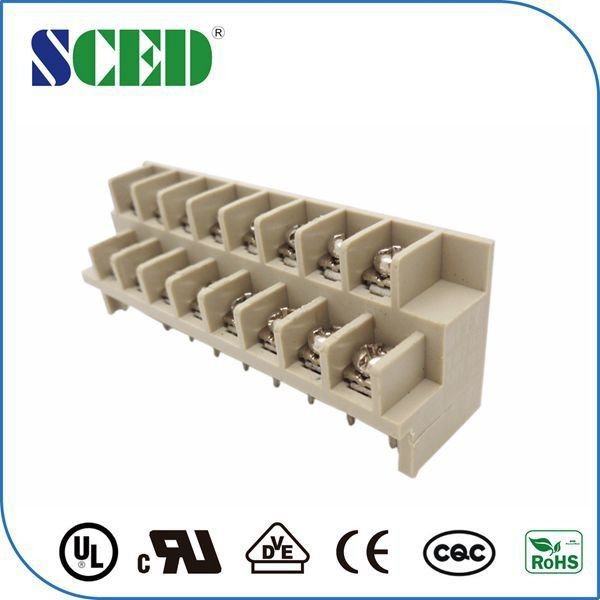

    Drawing and Photos



    Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips



    Two Row Terminal Block Barrier Connector 7.62mm Pitch Barrier StripsTwo Row Terminal Block Barrier Connector 7.62mm Pitch Barrier Strips
