| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TB762-02F-D3 |
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Wire Inlet: | Right Angle Wire Inlet | Color: | Black |
|---|---|---|---|
| Number Of Contacts: | 2P-22P | Pitch: | 7.62mm |
| Rated Current: | 10A | Rated Voltage: | 300V |
| Type: | Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks | Rate Voltage/ Current: | 300V/10A |
| High Light: | electrical terminal block,barrier type terminal block |
||

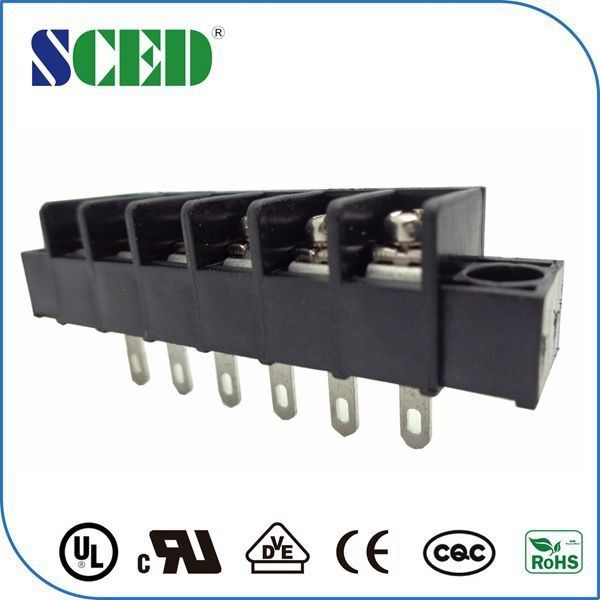

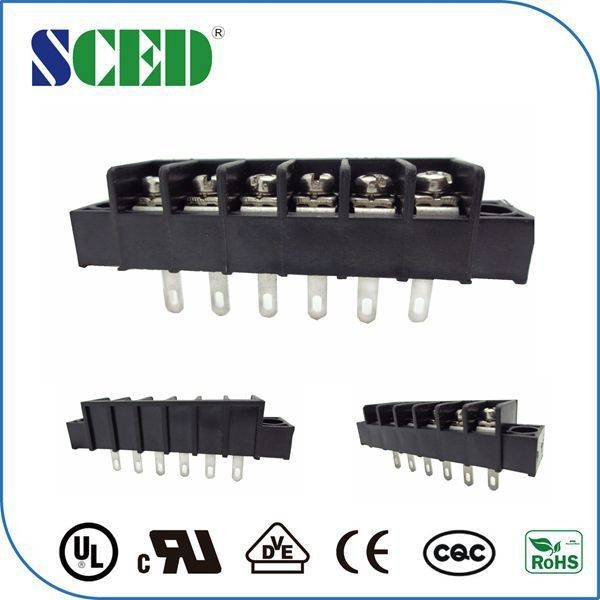

With Flange Barrier Terminal Block Connector 7.62mm 14-22 AWG Power Connector
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
1.2x3.4 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the
color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
