Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power

Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power

    • Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power
    • Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power
    • Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power
  • Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Levels: Single Level Wire Inlet: Right Angle Wire Inlet
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
    Number Of Contacts: 2P-24P Pitch: 7.62mm
    Rated Current: 15A Rated Voltage: 300V
    Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks Wire Range: 14-22 AWG

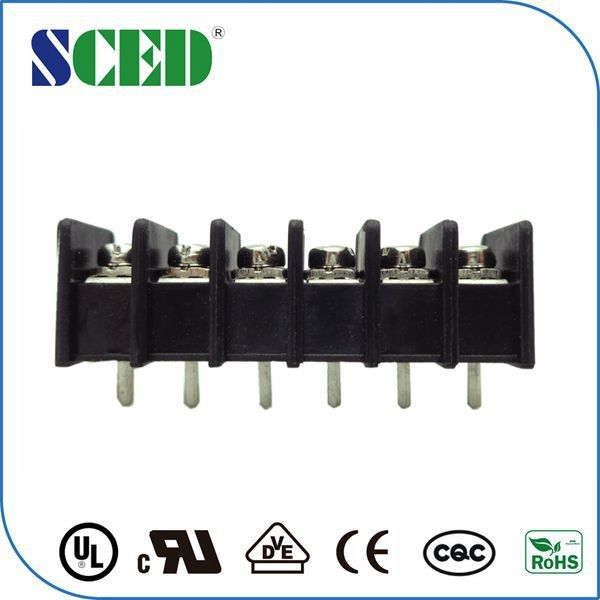

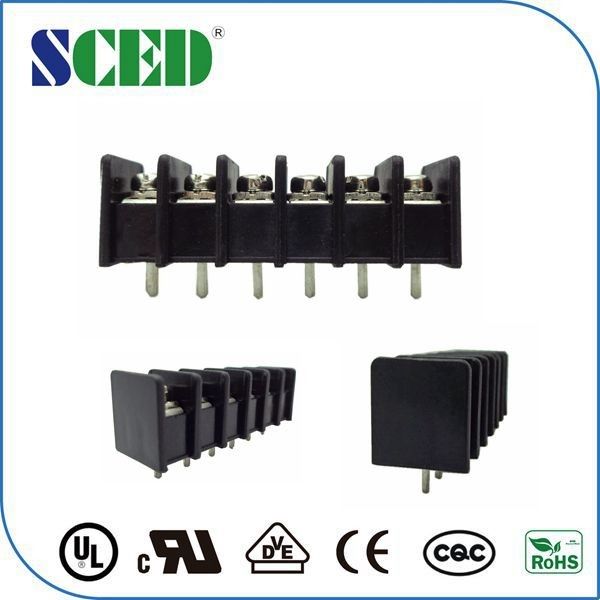

    Single Level Barrier Terminal Block 2 - 24 Pin Pitch 7.62mm For LED Switch Power





    ■  Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■ Single Level;  □Double levels;  □Triple levels

    Standard color: Black. Other colors also available, please refer to below How to Order and select the color

    you want.

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.

    How to order:

    Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power



    Applications:

                             PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

    Military, Elevator, etc..





    Parameter and Drawing Specifications:



    UL Technical Data

    B          C          D

    Rated Voltage / Current              V/A

       300 / 15                  300 / 10

    Wire Range                       AWG

        14-22                    14-22

    IEC Technical Data



    Overvoltage Category

           Ⅲ         Ⅲ         Ⅱ

    Contamination Class

     3          2          2

    Rated Voltage / Current              V/A

      250 / 24      320 / 24       400 / 24

    Rated Surge Voltage                 KV

           4          4           4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

                  φ1.8

    Stripping Length                    mm

                   7-8

    Screw / Torque                    / lbf.in

                M 3/ 5-7







    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand





    Photos and Drawing



    Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power



    Single Level Pluggable Terminal Block 2 - 24 Pin Pitch For LED Switch Power
