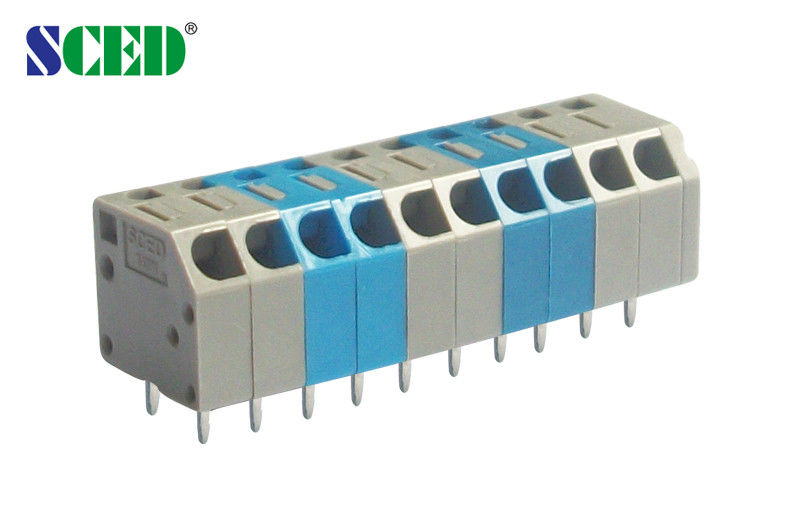

Pitch 3.5mm Wiring Terminal Blocks 300V 10A PA66 Plastic Brass

Pitch 3.5mm Wiring Terminal Blocks 300V 10A PA66 Plastic Brass

  • Pitch 3.5mm Wiring Terminal Blocks 300V 10A PA66 Plastic Brass
Pitch 3.5mm Wiring Terminal Blocks 300V 10A PA66 Plastic Brass
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: UL,CE,CUL,CQC,VDE etc
Model Number: TJ381-16
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.051-0.068
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Plastic: PA66 Terminal: Brass
Type: Spring Pitch: 3.5mm
Spring: Stainless Steel Voltage: 300V
Current: 10A Poles: Any Poles Available
Inlammability Class: UL94 V0 Insulation Resistance: Above DC500V, 500MΩ
High Light:

spring clamp terminal block

,

wiring terminal blocks

Pitch 3.50mm Spring Terminal Block 300V 10A PA66 Plastic Brass



Detailed product Description:



Pitch 3.50mm, 300V 5A, 2P-28P, Spring Terminal blocks, screwless terminal blocks

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch

2.Power Supply, Electric Lighting, Industry Control

3. Automation, Rail Transportation, Communication

4.Electric Power, Security

5.Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

14-26(sol) 16-26(str)



14-26(sol) 16-26(str)

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

125 / 10

250 / 10

320 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

8-9



Competitive Advantage:



  1. High quality
  2. Good price
  3. Quickly response
  4. Full range products for selection
  5. Good after-sales service
  6. OEM and ODM service
