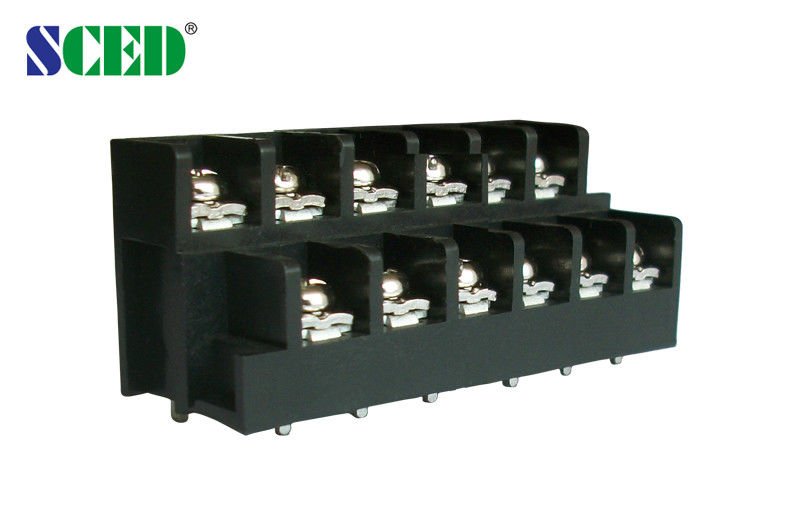

20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels

20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels

20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels

Product Details:

Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,VDE,CQC etc.
Model Number: TB1100-02

Payment & Shipping Terms:

Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.153-0.203
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Material: Brass Current: 30A
Voltage: 300V Type: Barrier
Available Poles: 2-22 Poles Inflammability Class: UL94, V-0
Contact Resistance: Less Than 8mΩ Rated Surge Voltage: No Abnormal Within 1 Minute
Pitch: 11.00 Mm Insulation Resistance: Above DC500V, 500MΩ

20A Barrier Terminal Block 300V Pitch 11mm Plastic PA66 Brass Two Levels





Detailed product Description:



Pitch 11.00mm, 300V 30A, 4*2P-16*2P, Barrier Terminal blocks, power terminal blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Level;  ■Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30



300 / 10

Wire Range                       AWG

12-24



12-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 32

800 / 32

1000 / 32

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ2.3

Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M 4 / 10-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
