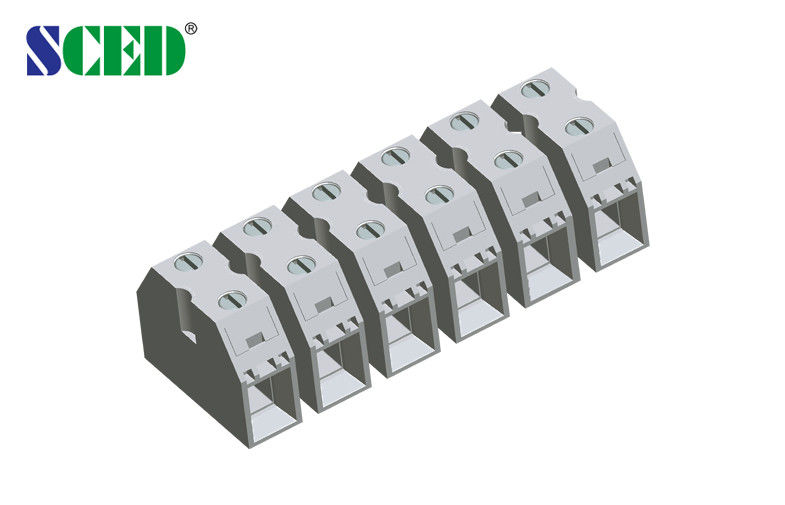

50A Feed Through Terminal Block Pitch 13.5mm 2 - 16 Poles Copper

50A Feed Through Terminal Block Pitch 13.5mm 2 - 16 Poles Copper

    • 50A Feed Through Terminal Block Pitch 13.5mm 2 - 16 Poles Copper
  • 50A Feed Through Terminal Block Pitch 13.5mm 2 - 16 Poles Copper

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC,VDE etc.
    Model Number: TR-6N-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.148-0.29 Per Pole
    Packaging Details: Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Insulation Material: PA66 Inflammability: UL94 V0
    Screw: Steel Stripping Length: 7-8
    Voltage: 600V Current: 50A
    Wire Range: 8-26 AWG Pitch: 13.5mm
    Conduction Board: Copper Clamp Cage: Brass
    High Light:

    pcb screw terminal blocks

    ,

    pcb mount terminal block

    50A 600V Feed Through Terminal Block Pitch 13.5mm 2-16 Poles Copper





    Detailed product Description:



    Pitch 13.50mm, 600V 50A, 2-16P, Feed Through Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Grey. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 50

    600 / 50

    600 / 5

    Wire Range                       AWG

    8-26

    8-26

    8-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    800 / 57

    1000 / 57

    1000 / 57

    Rated Surge Voltage                 KV

    8

    8

    8

    Rated Connecting Capacity           mm2

    6

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Conduction Board / Plating

    Copper / Nickel Plated

    Clamp Cage / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M4 / 8-10.6



    ompetitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand50A Feed Through Terminal Block Pitch 13.5mm 2 - 16 Poles Copper 0
