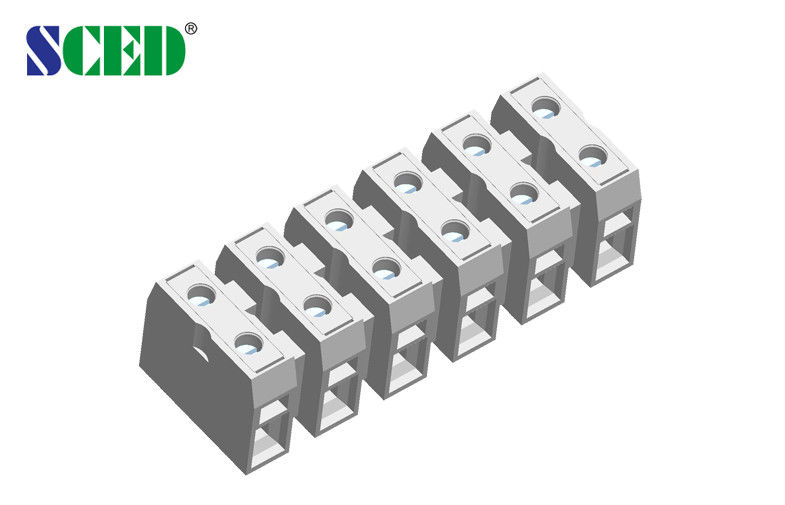

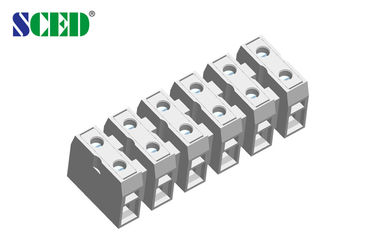

600V Feed Through Terminal Block 30A Pitch 12.00mm PA66 Copper

600V Feed Through Terminal Block 30A Pitch 12.00mm PA66 Copper

600V Feed Through Terminal Block 30A Pitch 12.00mm PA66 Copper

Product Details:

Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TR-5N-01

Payment & Shipping Terms:

Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.235-0.268 per pole
Packaging Details: Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Conduction Board: Copper Color: Grey
Voltage: 600V Current: 30A
Clamp Cage: Brass Screw: Steel
Pitch: 12mm Insulation Material: PA66
Inflammability: UL94 V0 Stripping Length: 6-7

600V Feed Through Terminal Block 50A Pitch 12.00mm PA66 Copper



Detailed product Description:



Pitch 12.00mm, 600V 30A, 2-16P, Feed-Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                       AWG

10-30

10-30



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 41

1000 / 41

1000 / 41

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Clamp Cage / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand600V Feed Through Terminal Block 30A Pitch 12.00mm PA66 Copper
