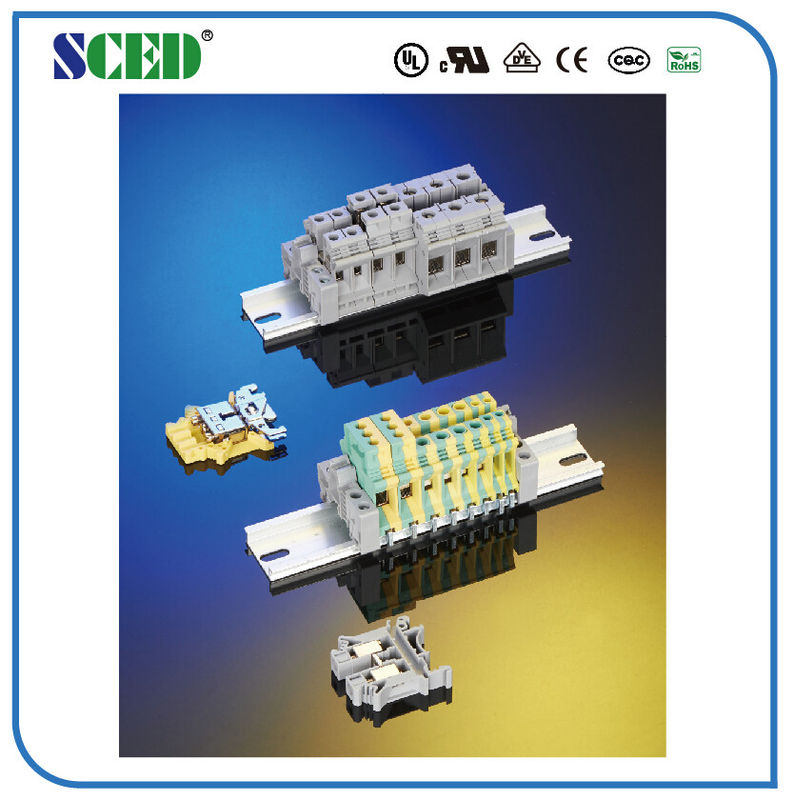

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm

6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm

    • 6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
    • 6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
    • 6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
  • 6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: SCED
    Certification: UL, CE, CUL, VDE, CQC etc.
    Model Number: TR-5N

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 PCS
    Price: USD 0.153-0.244 per PCS
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
    Delivery Time: 5-20 days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    AWG: 30-10 Terminal Width: 6.2mm
    Current: 600V Volt: 30A
    Inflammability Class: Inflammability Class Contact Resistance: Less Than 8mΩ
    Rated Surge Voltage: No Abnormal Within 1 Minute Insulation Resistance: Above DC500V, 500MΩ

    6mm2 Rail Mounted Terminal Blocks 600V 30A AWG:30-10 Terminal width 6.2mm





    Detailed product Description:



    Terminal width: 6.2mm, 600V 30A, AWG:30-10, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available.



    Applications:

    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



    Parameter and Drawing Specifications:

    Description                    Color

    Type

    Terminal                       Grey

    TR-5N

    6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mmEnd Cover                      Grey



    D-TR-3/16

    6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mmFixed Bridge



    FBI 10-6        Imax: 41A

    6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mmInsertion Bridge



    EB 10-6        Imax: 32A

    6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mmSeparating Plate



    TS-K

    6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mmPartition Plate



    ATP-TR

    Zack Strip                      White

    ZB6

    Screwdriver

    SZS0.6×3.5

    Rail Material

    aluminum

    Dimensions                             mm

    6.2/42.5/2

    Height (U35: 7.5/U35: 15G 32)              mm

    47/54.5/52

    Screw / Torque                           Nm

    M3 / 0.6-0.8

    Stripping Length                          mm

    8

    IEC Technical Data



    Max. Load Current / Cross Section         A / mm2

                 41 / 6

    Rated Surge Voltage / Contamination Class    KV / -

                  8 / 3

    Surge Voltage Category

    Ⅲ / Ⅰ



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand6mm2 Rail Mount Terminal Block 600V 30A AWG 30 - 10 Terminal Width 6.2mm
