Pitch 30mm Through Panel Terminal Blocks PA66 Terminal And Connector

Pitch 30mm Through Panel Terminal Blocks PA66 Terminal And Connector

    • Pitch 30mm Through Panel Terminal Blocks PA66 Terminal And Connector
    • Pitch 30mm Through Panel Terminal Blocks PA66 Terminal And Connector
    • Pitch 30mm Through Panel Terminal Blocks PA66 Terminal And Connector
  • Pitch 30mm Through Panel Terminal Blocks PA66 Terminal And Connector

    Product Details:

    Place of Origin: SHENZHEN CHINA
    Brand Name: SCED
    Certification: CE ROHS
    Model Number: TR-150N-02F

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Packaging Details: Standard Export Carton Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 7-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: Through Panel Pitch: 30.00mm
    Screw: Steel Torque: 50-60 Ibf.in
    Conduction Board: Copper Insulation Material: PA66
    Wire Range: 2-300kcmil

    Pitch 30mm Through Panel Terminal Blocks PA66 Terminal and Connector





    1. Applications:



    1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting,



    2. Industry Control, Automation,



    3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,



    Elevator, etc..



    2. Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 285





    Wire Range                       AWG

    2-300kcmil





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    630 / 309

    800 / 309

    1000 / 309

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    150

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Steel / Nickel Plated

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    26

    Screw / Torque                    / lbf.in

    M10 / 50-60





    3. Feature Advantage:



    1. Perforation terminal block is widely used in Industrial Control, Power Supply, Energy Saving, etc.


    2. It can be stackable to be different poles, easy to be mounted on PCB or control board,


    3. It has very good mechanical properties and electrical properties,





    4. Competitive Advantage:



    1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;



    2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a  high level of service;



    3. Discount offered is based on qty.

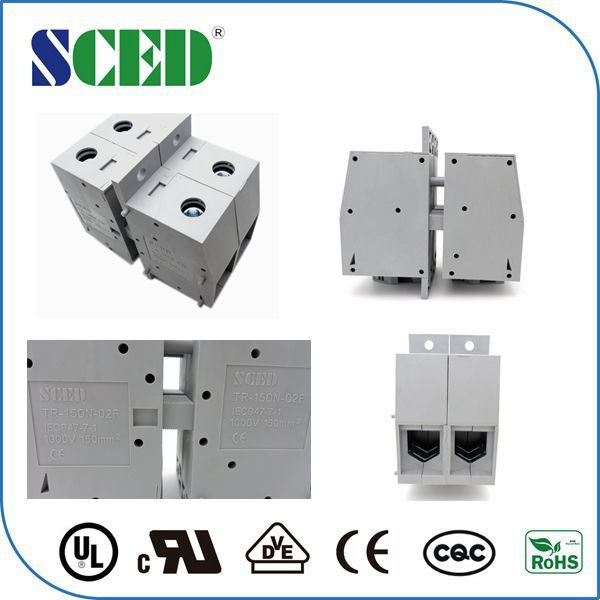

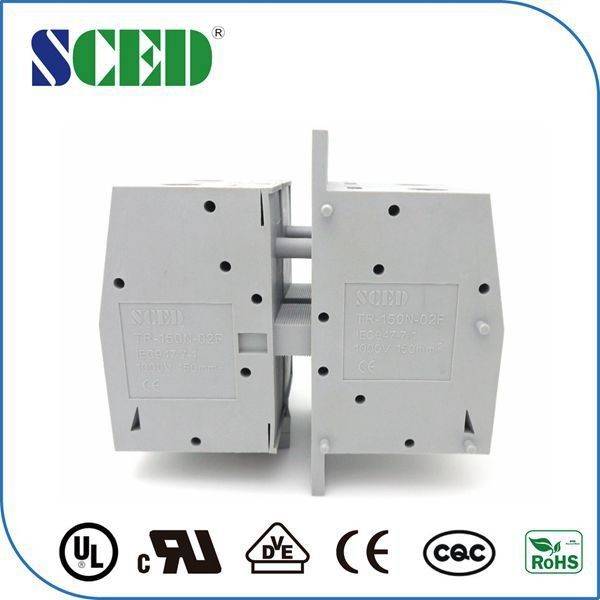

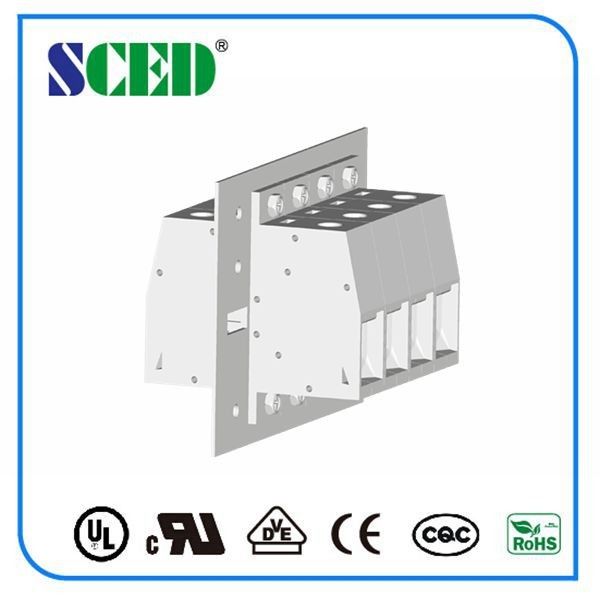

    5. Photo and Drawing



    Pitch 30mm Through Panel Terminal Blocks PA66 Terminal And ConnectorPitch 30mm Through Panel Terminal Blocks PA66 Terminal And Connector
