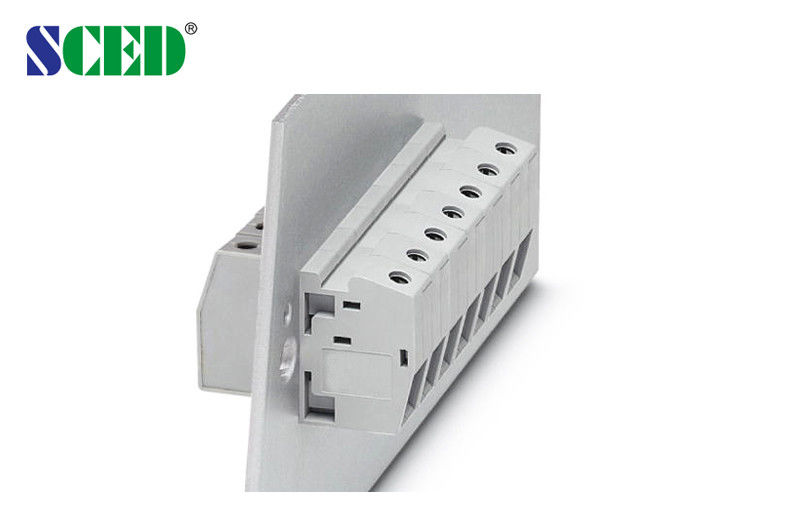

10.1mm Terminal Width Through Panel Terminal Blocks Brass UL94 V0 65A

10.1mm Terminal Width Through Panel Terminal Blocks Brass UL94 V0 65A

    • 10.1mm Terminal Width Through Panel Terminal Blocks  Brass UL94 V0 65A
    • 10.1mm Terminal Width Through Panel Terminal Blocks  Brass UL94 V0 65A
    • 10.1mm Terminal Width Through Panel Terminal Blocks  Brass UL94 V0 65A
  • 10.1mm Terminal Width Through Panel Terminal Blocks  Brass UL94 V0 65A

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC,VDE
    Model Number: TR-10N-04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.1-0.25
    Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
    Delivery Time: 5-20 Work Days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Color: Grey Insulation Material: PA66
    Voltage: 300V Current: 65A
    Terminal Width: 10.1mm Material: Brass
    Plating: Nickel Plating Rated Surge Voltage: No Abnormal Within 1 Minute
    Inflammability Class: UL94, V-0 Contact Resistance: Less Than 8mΩ

    10.1mm Terminal Width Through Panel Terminal Blocks  Brass UL94 V0 65A



    Detailed product Description:



    Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



    Applications:

    1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

    2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

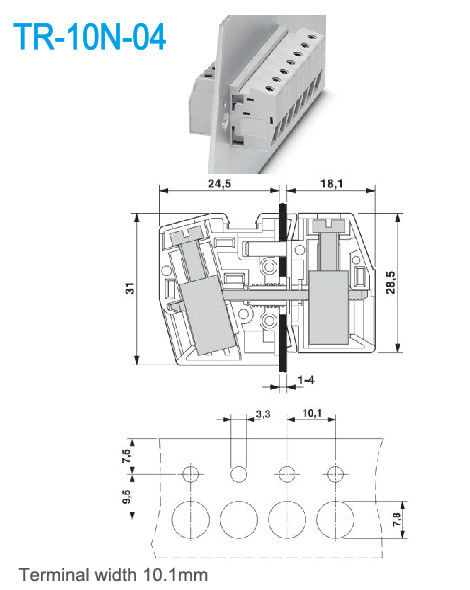

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 65



    300 / 10

    Wire Range                       AWG

    6-24



    6-24

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    630 / 76

    800 / 76

    1000 / 76

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    10

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    11

    Screw / Torque                    / lbf.in

    M4 / 10.6-13



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand10.1mm Terminal Width Through Panel Terminal Blocks  Brass UL94 V0 65A
