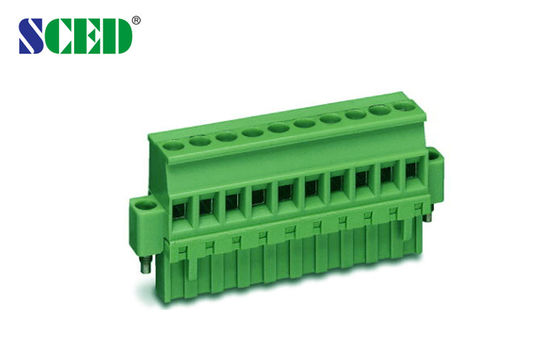

Nickel Plated Electric Terminal Block Female Parts PA66 Brass Clamp Cage

Nickel Plated Electric Terminal Block Female Parts PA66 Brass Clamp Cage

Nickel Plated Electric Terminal Block Female Parts PA66 Brass Clamp Cage

Product Details:

Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE,UL,CUL,VDE,CQC etc.
Model Number: TP508P-02F

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.02-0.15
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 1000000 Pole/Poles per Month
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Insulation Material: PA66 Voltage: 300V
Current: 18A Clamp Cage: Brass
Plating: Nickel Plated Screw: Steel
Inflammability Class: UL94, V-0 Rated Surge Voltage: No Abnormal Within 1 Minute
Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less Than 8mΩ

Nickel Plated Power Distribution Terminal Block Female Parts PA66





Detailed product Description:



Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



■Single Level;  □Double Levels;  □Triple Levels



This female plug match with male sockets’ series: TP508H-00F, TP508H-00VF, TP508H-02F, TP508H-06F, TP508H-06VF



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/18



300/18

Wire Range                       AWG

12-30



12-30

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

630 / 18

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Contactor / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
