PBT Barrier Terminal Blocks 8.70mm Spacing 250V/15A 14 Poles UL94-V0

PBT Barrier Terminal Blocks 8.70mm Spacing 250V/15A 14 Poles UL94-V0

PBT Barrier Terminal Blocks 8.70mm Spacing 250V/15A 14 Poles UL94-V0

Product Details:

Place of Origin: Guangdong, China
Brand Name: SCED
Certification: CE,UL,CUL,VDE,CQC etc.
Model Number: TB870-00

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.03-0.15
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198
Delivery Time: 5-20 Work Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Screw: M3 Levels: Double Levels
Material: PBT Pitch: 8.70mm
Voltage: 250V Current: 15A
Torque: 7-10 Lbf.in Rated Surge Voltage: No Abnormal Within 1 Minute
Contact Resistance: Less Than 8mΩ Insulation Resistance: Above DC500V, 500MΩ

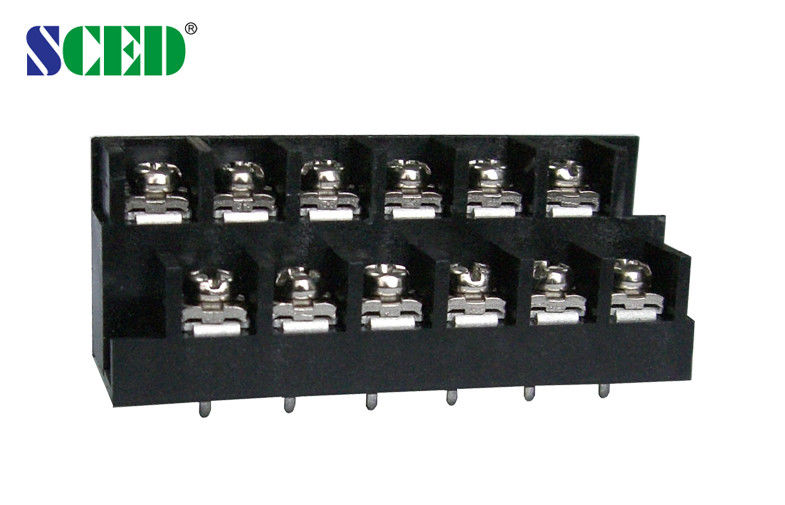

PBT Barrier Terminal Blocks 8.70mm Spacing 250V/15A 14 Poles UL94-V0



Detailed product Description:



Pitch 8.70mm, 250V 15A, 2*2P-14*2P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Level;  ■Double levels;  □Triple levels

Standard color: Black. Other colors also available.



Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply

2.Electric Lighting, Industry Control, Automation, Rail Transportation

3.Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

250 / 15



250 / 10

Wire Range                       AWG

14-26



14-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 24

400 / 24

630 / 24

Rated Surge Voltage                 KV

5

5

5

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

φ1.6

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3.5 / 7-10



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response

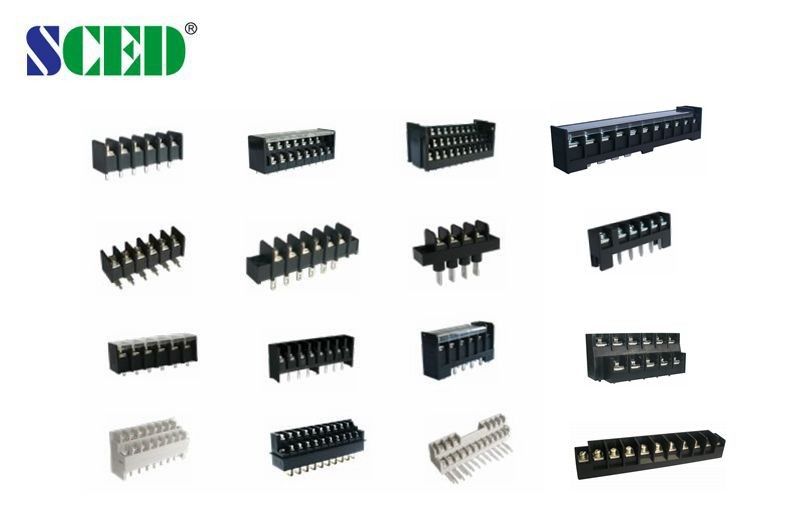

  4. Full range products for selection
  5. OEM and ODM service
  6. Good after-sales servicePBT Barrier Terminal Blocks 8.70mm Spacing 250V/15A 14 Poles UL94-V0

PBT Barrier Terminal Blocks 8.70mm Spacing 250V/15A 14 Poles UL94-V0
