| Place of Origin: | Shenzhen China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC,VDE etc. |
| Model Number: | TB762-00-CMn |
| Minimum Order Quantity: | 500 PCS |
|---|---|
| Price: | USD 0.01-0.19 per pole |
| Packaging Details: | Normally, one master carton packs 16 inner boxes inside. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 1KK poles each month |
| Payment Terms: | T/T |
| Rated Connecting Capacity: | 2.5 Mm2 | Inflammability Class: | UL94, V-0 |
|---|---|---|---|
| Color: | Black | Level: | Double Level |
| Terminal Material: | Brass | Plastic: | PBT |
| Plating: | Tin Plated | Screw: | Steel |
| Pitch: | 7.62mm | Current & Voltage: | 300V 15A |
| High Light: | barrier type terminal block,pcb terminal blocks |
||

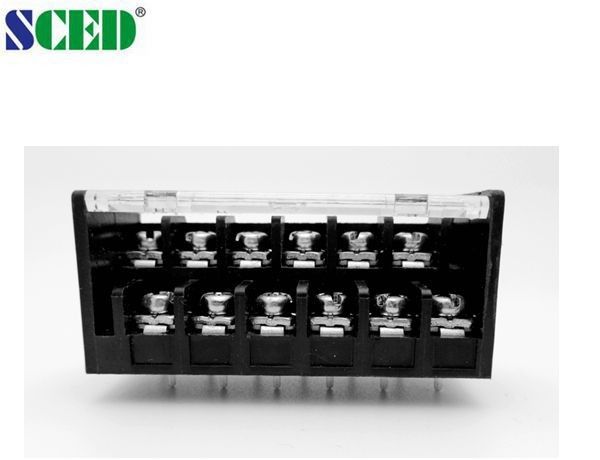

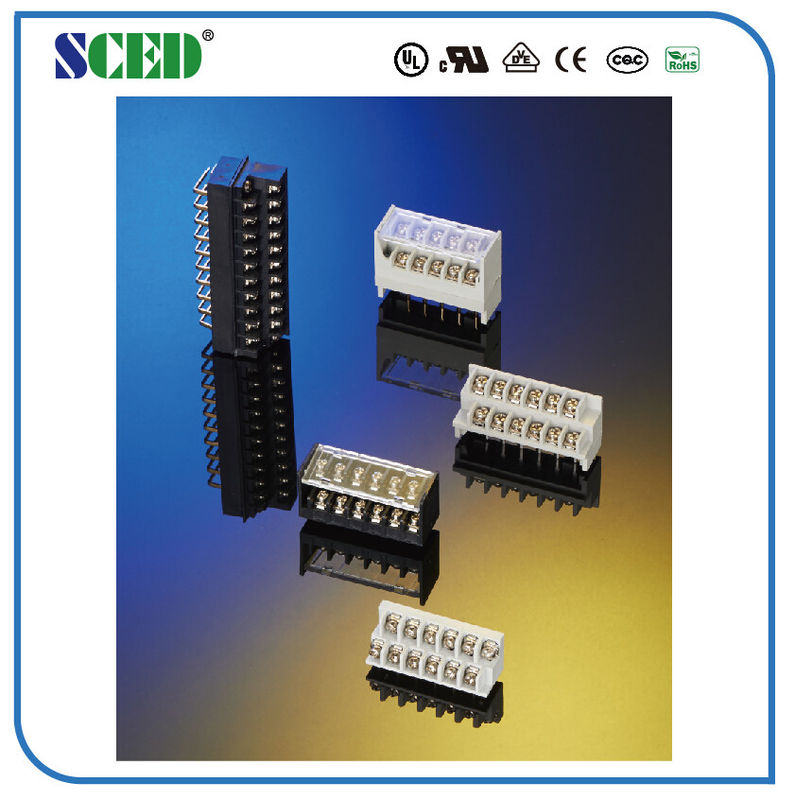

Double Level Barrier Terminal Block 7.62mm Pitch 300V 15A Black
Detailed product Description:
Pitch 7.62mm, 300V 15A, 2*2P-22*2P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available.
Applications:
They can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

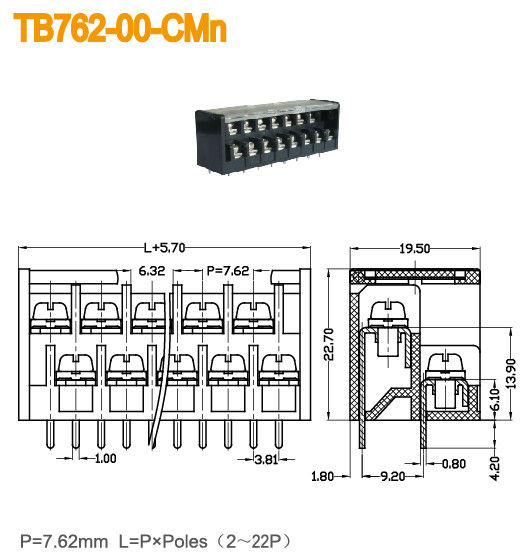

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/15 |
|
300/10 |
|
Wire Range AWG |
14-22 |
|
14-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 24 |
320 / 24 |
400 / 24 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass /Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.5 |
||
|
Stripping Length mm |
7-8 |
||
|
Screw / Torque / lbf.in |
M 3 / 5-7 |
||
Competitive Advantage:
Contact Person: Martin Liang
Tel: +8613902441660
Fax: +86-755-28769522
