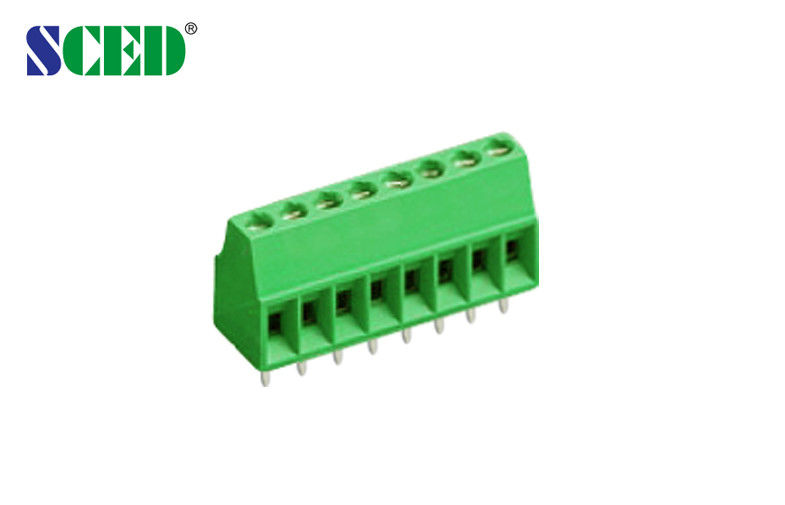

2.54mm PCB Terminal Block Brass Green Right Angle Wire Inlet

2.54mm PCB Terminal Block Brass Green Right Angle Wire Inlet

    • 2.54mm PCB Terminal Block Brass Green Right  Angle Wire Inlet
    • 2.54mm PCB Terminal Block Brass Green Right  Angle Wire Inlet
    • 2.54mm PCB Terminal Block Brass Green Right  Angle Wire Inlet
  • 2.54mm PCB Terminal Block Brass Green Right  Angle Wire Inlet

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC,VDE etc.
    Model Number: TJ254-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Price: USD 0.01-0.2 per pole
    Packaging Details: Normally, one master carton packs 16 inner boxes inside. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each month
    Contact Now
    Detailed Product Description
    Terminal Material: Brass Plating: Nickel Plated
    Wire Range: 16-30 AWG Color: Green
    Screw: Steel PCB Hole Diameter: φ1.1mm
    Insulation Material: PA66 Poles: 2p-22p
    Pitch: 2.54mm Wire Inlet: Right Angle

    2.54mm PCB Terminal Block Green Green  Right Angle Wire Inlet





    Detailed product Description:



    Pitch 2.54mm, 125V 6A, 2P-22P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Deck;  □Double decks;  □Triple decks

    Standard color: Green. Other colors also available.





    Applications:

    Such as: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

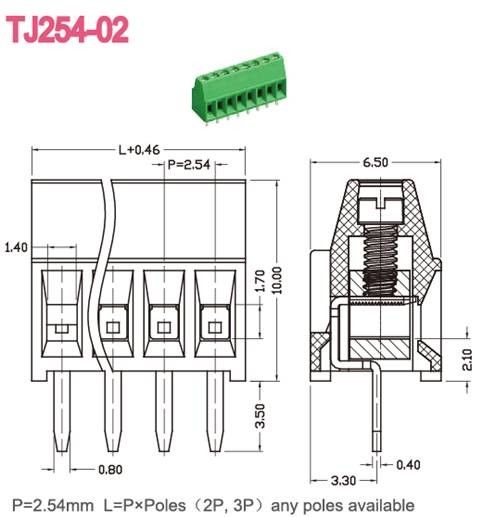

    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    125 / 6





    Wire Range                       AWG

    16-30





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    63 / 6

    160 / 6

    320 / 6

    Rated Surge Voltage                 KV

    1.5

    1.5

    2.5

    Rated Connecting Capacity           mm2

    0.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                 mm

    φ1.1

    Stripping Length                    mm

    4-5

    Screw / Torque                    / lbf.in

    M1.6 / 1.0-1.3





    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response and good after-sales service
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
