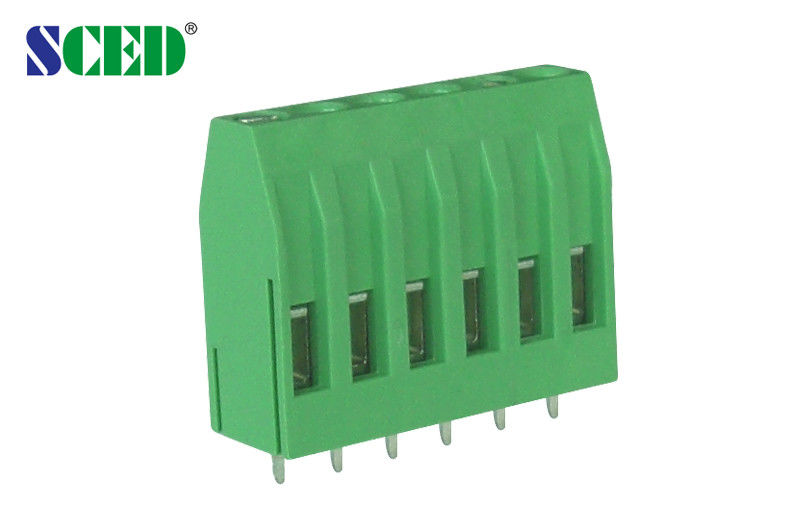

Green 300V PCB Solder Terminal Block With Single Level For Power Supply

Green 300V PCB Solder Terminal Block With Single Level For Power Supply

Green 300V PCB Solder Terminal Block With Single Level For Power Supply

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ500-03-T1

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard export packing carton
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: PCB Type Pitch: 5.00 Mm
Nom.Voltage: 300V Nom.Current: 10A
Color: Green, Other Color Available Screw: M3 Steel

Green 300V PCB Solder Terminal Block With Single Level For Power Supply


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.5

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand


Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Drawing Specifications


TJ500-03-T1
