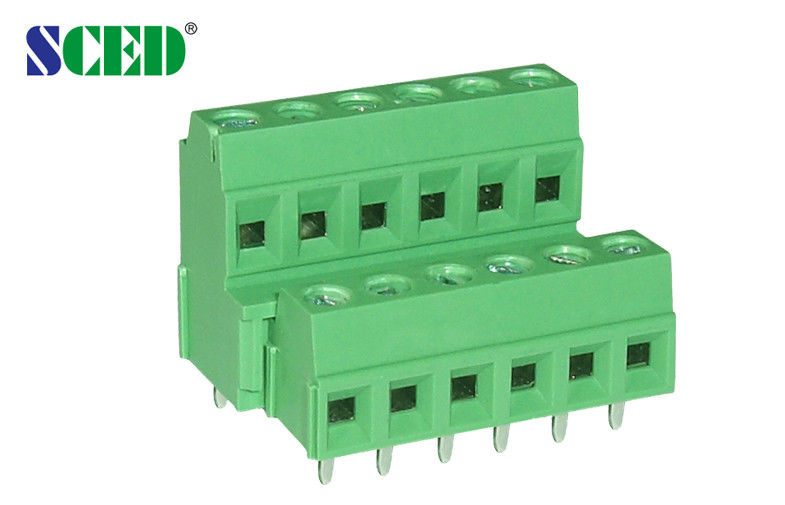

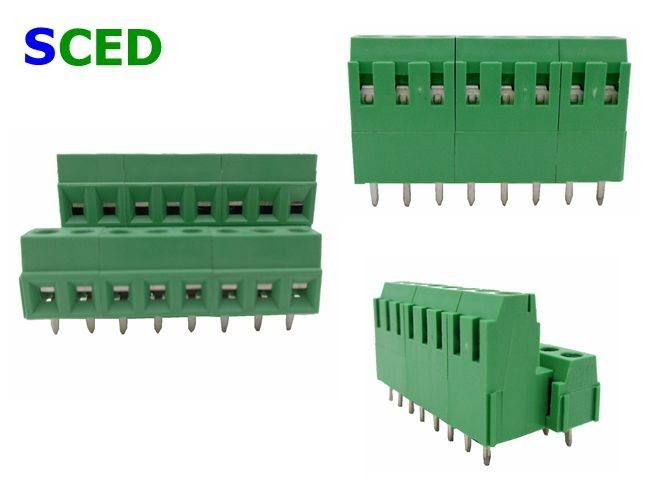

Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block

Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block

    • Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block
    • Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block
  • Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard export packing carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: PCB Pitch: 3.81mm
    Nom.Voltage: 300V Nom.Current: 10A
    Wire Range: 16-24 A .W.G Insulation Material: PA66

    Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block





    Parameter:





    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 10





    Wire Range                                AWG

    16-24





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    160 / 10

    200 / 10

    400 / 10

    Rated Surge Voltage                     KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.0

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                mm

    φ1.3

    Stripping Length                    mm

    4-5

    Screw / Torque                    / lbf.in

    M2 / 1.8-2.0





    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Drawing Specifications



    TJ381-01



    Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal BlockPitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal BlockPitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block

    Photo of Applications:





    Pitch 3.8mm PCB Terminal Blocks, Double Level Clamp Euro Screw Terminal Block
