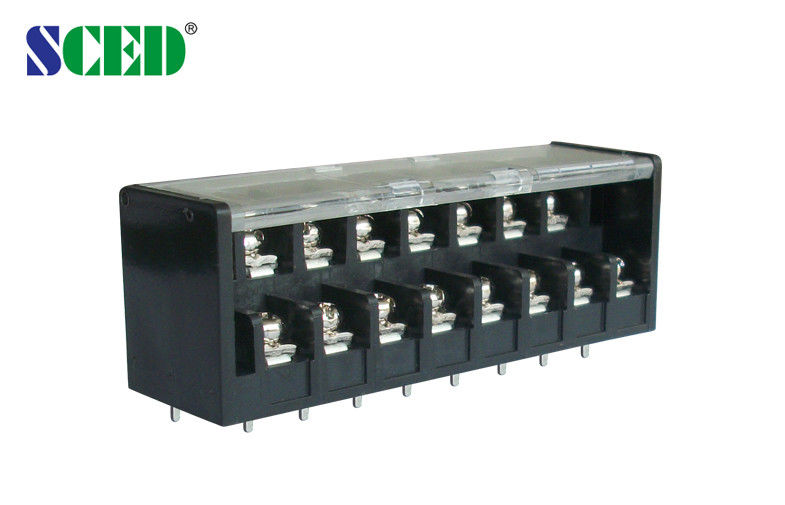

Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

    • Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power
    • Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power
  • Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-00-CMn

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Poles: 2-22 Poles Pitch: 7.62mm
    Rated Voltage: 300V Rated Current: 15A
    Wire Range: 14-22 Insulation Material: PBT
    Inflammability Class: Inflammability Class Stripping Length: 7-8

    Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power



    Quick Details:



    Model: TB762-00-CMn

    Pitch: 7.62mm
    Poles: 2-22 Poles
    Rated Voltage: 300v
    Rated Current: 15A
    Wire Range: 14-22 AWG



    Descripition:



    1. Barrier terminal block made by PBTmaterial

    2. Inflammability Class is UL94, V-0,can be used for LED Power.

    3. Black color is main color, the other colors are available.



    Parameter and Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/15



    300/10

    Wire Range                       AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 24

    320 / 24

    400 / 24

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.5

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M 3 / 5-7



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Tag:

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers.



    Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

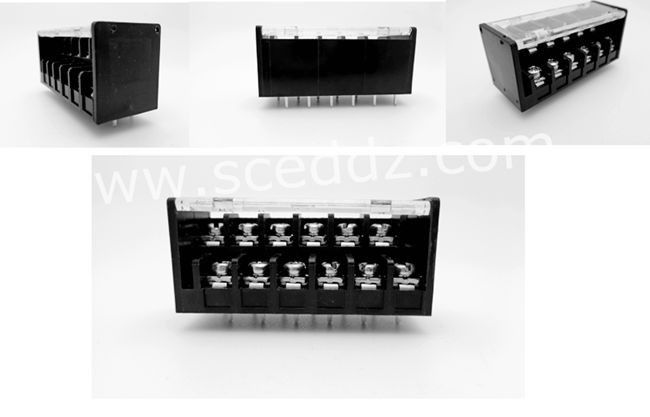

    Drawing photo and Detail photo



    Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power



    Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power

    Dual Decks 7.62mm Spacing Electrical Barrier Terminal Blocks PBT For LED Power
