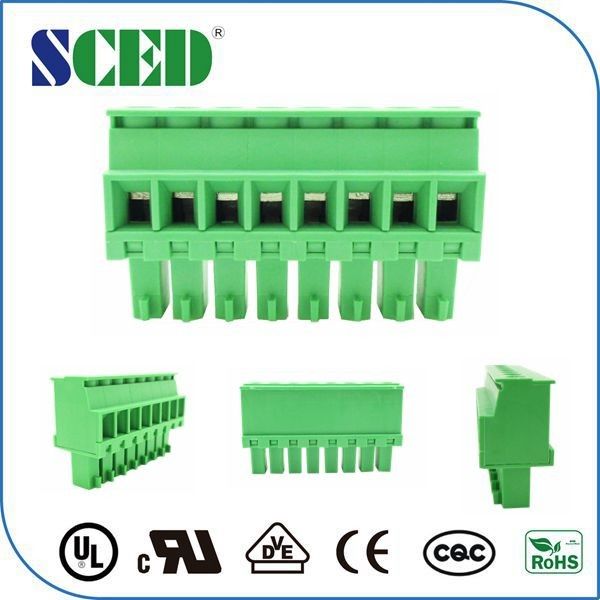

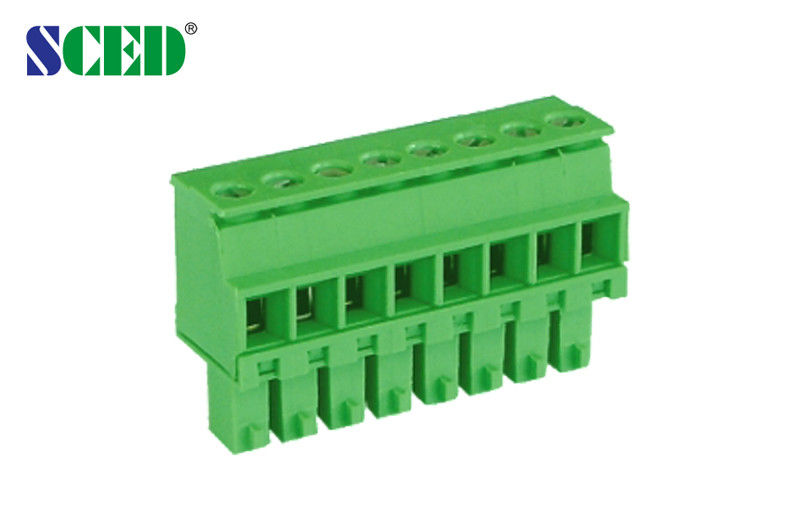

Electronic components Female Plug In Terminal Block With Screw Clamp

Electronic components Female Plug In Terminal Block With Screw Clamp

    • Electronic components Female Plug In Terminal Block With Screw Clamp
    • Electronic components Female Plug In Terminal Block With Screw Clamp
  • Electronic components Female Plug In Terminal Block With Screw Clamp

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TP381P-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Imflammability: UL 94, V-0 Voltage: 300V
    Current: 8A Pitch: 3.81mm
    Poles: 2-22 Poles Color: Green, Other Color Available
    Wire Range: 16-30 AWG Torque (lbf.in): 2-2.2
    Item: Pluggable Terminal Blocks Key Words: Plug Terminal Connector

    Electronic components Female Plug In Terminal Block With Screw Clamp



    Spec.:

    1. PA66 Housing

    2. Clamp cage brass material, Phosphor Bronze terminal

    3. Screw Steel / Zinc Plated M2 / 2-2.2lbf.in

    4. 300V 8A

    5.16-30 AWG.  1.5mm2





    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 8





    Wire Range                       AWG

    16-30





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    160 / 8

    160 / 8

    320 / 8

    Rated Surge Voltage                 KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Phosphor Bronze / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    7

    Screw / Torque                    / lbf.in

    M2 / 2-2.2



    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Drawing with photos



    TP381P-01



    Electronic components Female Plug In Terminal Block With Screw Clamp

    Electronic components Female Plug In Terminal Block With Screw Clamp
