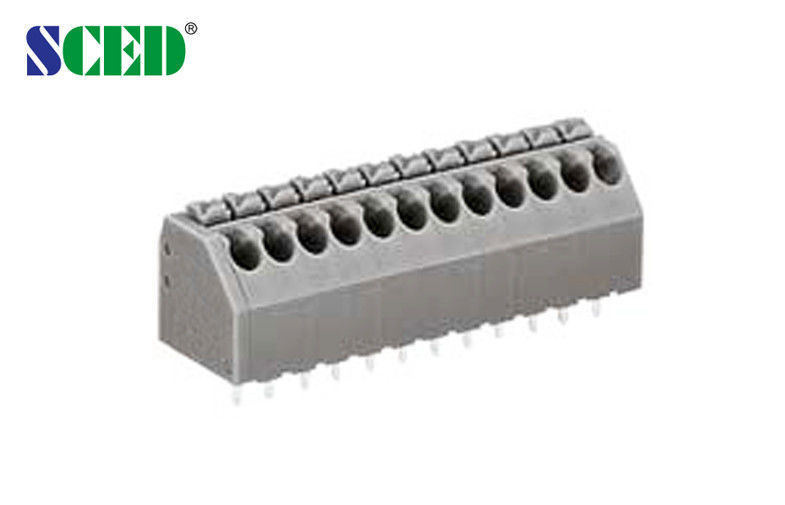

PCB Spring Terminal Block 3.5mm Pitch 5A 300V Grey Color UL94, V-0

PCB Spring Terminal Block 3.5mm Pitch 5A 300V Grey Color UL94, V-0

  • PCB Spring Terminal Block 3.5mm Pitch 5A 300V Grey Color UL94, V-0
PCB Spring Terminal Block 3.5mm Pitch 5A 300V Grey Color UL94, V-0
Product Details:
Place of Origin: Guangdong China
Brand Name: SCED
Certification: CE,UL,CUL,CQC, VDE etc.
Model Number: TJ381-03-D6
Payment & Shipping Terms:
Minimum Order Quantity: 500 Pc/Pcs
Price: US $ 0.07 - 0.11 / Pole
Packaging Details: Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month frequency converters spring terminal block
Contact Now
Detailed Product Description
Name: PCB Spring Terminal Block Pitch: 3.5 Mm
Current:: 5A Available Poles: 2-28 Poles
Volt:: 300 V Rated Surge Voltage: No Abnormal Within 1 Minute
Inflammability Class: UL94, V-0 Insulation Resistance: Above DC500V, 500MΩ
Contact Resistance: Less Than 8mΩ Type: Screw Terminal
High Light:

spring clamp terminal block

,

pcb spring terminal block

Detailed product Description:



Pitch 3.50mm, 300V 5A, 2P-28P, Spring Terminal blocks, Screwless terminals

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,  Elevator, etc..



Parameter and Drawing Specifications:



PCB Spring Terminal Block UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/5





Wire Range                       AWG

16-22





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 5

400 / 5

630 / 5

Rated Surge Voltage                 KV

4

4

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating



Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

8-9



PCB Spring Terminal Block 3.5mm Pitch 5A 300V Grey Color UL94, V-0 0



Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
