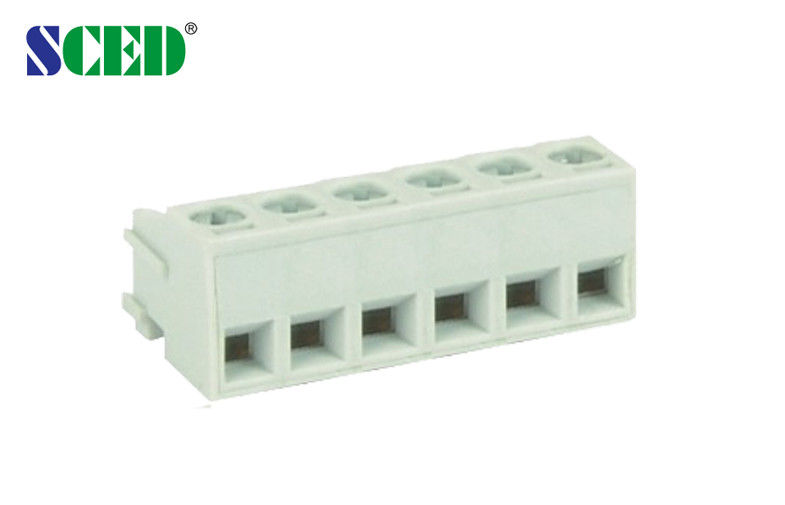

5.00mm 300V 10A 2P - 24P Pluggable Terminal block for Air Condition

5.00mm 300V 10A 2P - 24P Pluggable Terminal block for Air Condition

5.00mm 300V 10A 2P - 24P Pluggable Terminal block for Air Condition

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP500P-01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Current: 10A Standard Color: Light Grey
Volt: 300V Housing Material: PA66, UL 94, V-0
Pitch: 5.00mm

5.00mm 300V 10A 2P - 24P Pluggable Terminal block for Air Condition



5.00mm 300V 10A 2P - 24P Pluggable Terminal block for Air Condition



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/18



300/18

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

320 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.5

Pin Dimension                      mm

1.3 x 1.3





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
