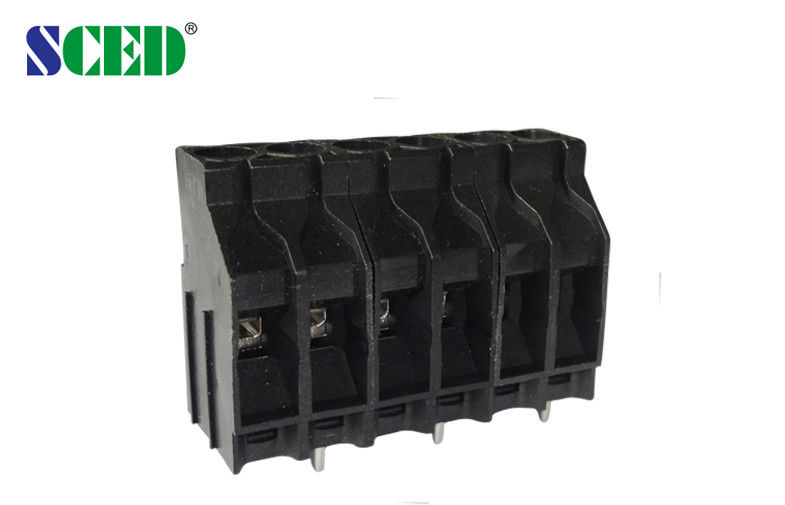

Connectron PCB Terminal block 600V 30A , pcb mount screw terminals

Connectron PCB Terminal block 600V 30A , pcb mount screw terminals

  • Connectron PCB Terminal block 600V 30A , pcb mount screw terminals
Connectron PCB Terminal block 600V 30A , pcb mount screw terminals
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ952-03-A1
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Pitch: 6.35mm Current: 30A
Housing: PA66 / UL94, V-0 Color: Black, Green, Blue And More Color Is Available
Volt: 600V Cage Type: Raising Series
High Light:

pcb terminal block connectors

,

pcb mount terminal block

Connectron PCB Terminal block 600V 30A , pcb mount screw terminals

Connectron PCB Terminal block 600V 30A , pcb mount screw terminals 0



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                       AWG

10-22

10-22



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

1000 / 32

1000 / 32

1000 / 32

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

4.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                 mm

φ1.6

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3







Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
