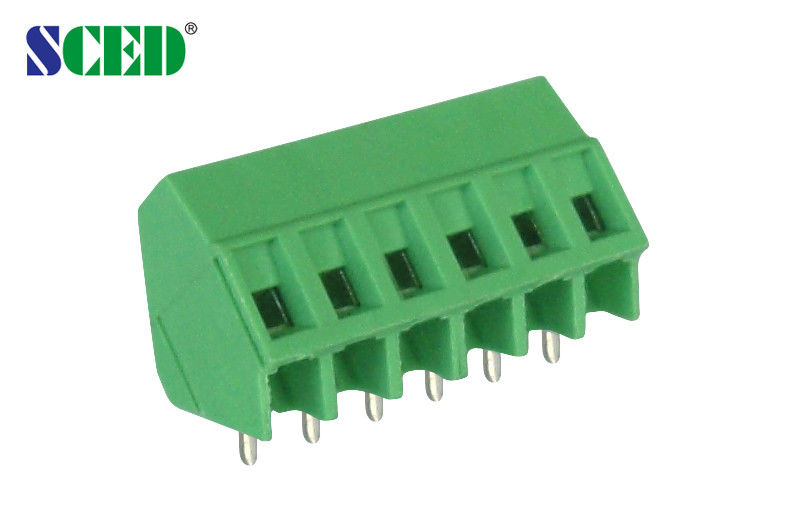

5.08mm wire connector PCB Terminal block for Electric Lighting

5.08mm wire connector PCB Terminal block for Electric Lighting

  • 5.08mm wire connector PCB Terminal block for Electric Lighting
5.08mm wire connector PCB Terminal block for Electric Lighting
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ508-03
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 7-20 working days
Contact Now
Detailed Product Description
Pitch: 5.08mm Current: 10A
Volt: 300V Housing: PA66 / UL94, V-0
Poles: From 2P To 24P Color: Green, Black, Grey And Others
High Light:

pcb screw terminal blocks

,

pcb mount terminal block

5.08mm wire connector PCB Terminal block for Electric Lighting



5.08mm wire connector PCB Terminal block for Electric Lighting 0



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
