Place of Origin: | Guangdong,China |
Brand Name: | SCED |
Certification: | UL,CE,CUL,CQC,VDE etc |
Model Number: | TJ381-16 |
Minimum Order Quantity: | 500 Piece/Pieces |
---|---|
Price: | USD 0.051-0.068 |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198 |
Delivery Time: | 5-20 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000000 Pole/Poles per Month |
Plastic: | PA66 | Terminal: | Brass |
---|---|---|---|
Type: | Spring | Pitch: | 3.5mm |
Spring: | Stainless Steel | Voltage: | 300V |
Current: | 10A | Poles: | Any Poles Available |
Inlammability Class: | UL94 V0 | Insulation Resistance: | Above DC500V, 500MΩ |
High Light: | 300V Wiring Terminal Blocks,Pitch 3.5mm Wiring Terminal Blocks,Plastic PA66 Plastic Spring Terminal Block |

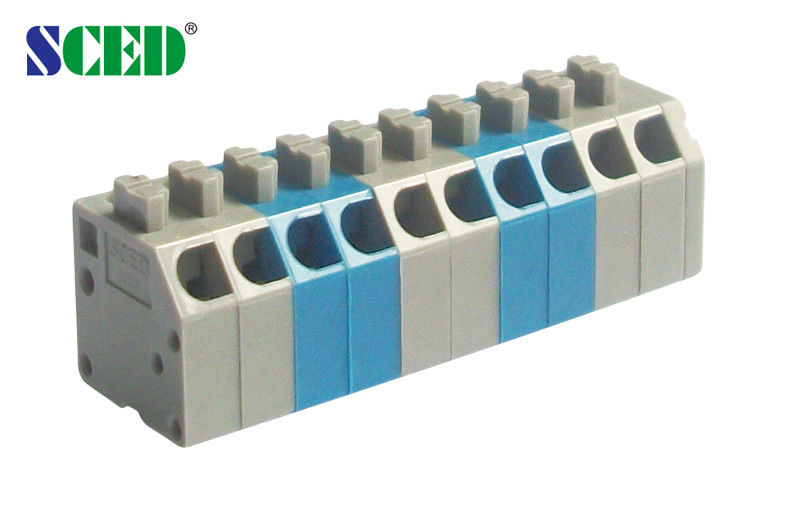

Pitch 3.50mm Spring Terminal Block 300V 10A PA66 Plastic Brass
Detailed product Description:
Pitch 3.50mm, 300V 5A, 2P-28P, Spring Terminal blocks, screwless terminal blocks
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch
2.Power Supply, Electric Lighting, Industry Control
3. Automation, Rail Transportation, Communication
4.Electric Power, Security
5.Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
Wire Range AWG |
14-26(sol) 16-26(str) |
|
14-26(sol) 16-26(str) |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
125 / 10 |
250 / 10 |
320 / 10 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Spring / Plating |
Stainless Steel / - |
||
Terminal / Plating |
Brass / Tin Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.2 |
||
Stripping Length mm |
8-9 |
Competitive Advantage:
