Place of Origin: | China |
Brand Name: | SCED |
Certification: | CE,CUL, UL, CQC, VDE etc. |
Model Number: | TD40-01-C |
Minimum Order Quantity: | 500 Piece/Pieces |
---|---|
Price: | USD 0.233-0.466 Per Pole |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Delivery Time: | 5-20 Working Days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000000 Pole/Poles per Month |
Current: | 40A | Voltage: | 600V |
---|---|---|---|
Pitch: | 13mm | Screw: | M5 |
Torque: | 16-18 Lbf.in | Stripping Length: | 8-10mm |
Plastic: | PBT | Inflammability Class: | UL94-V0 |
Conduction Board: | Brass | Wire Range: | 8-22 AWG |
High Light: | PBT Power Terminal Block Connector,13mm Power Terminal Block Connector,M5 Screw Panel Mount Terminal Block |

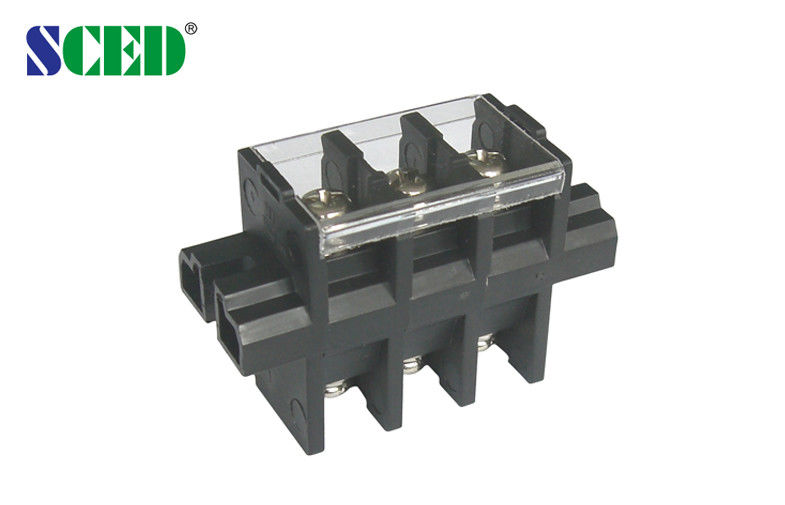

40A Panel Mount power terminal block connector Perforation Pitch 13mm M5 Screw Brass PBT
Detailed product Description:
Pitch 13.0mm, 600V 40A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors
Decks: ■Single Deck; □Double decks; □Triple decks
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 40 | 600 / 40 | 600 / 5 |
Wire Range AWG | 8-22 | 8-22 | 8-22 |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 40 | 1000 / 40 | 1000 / 40 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 8 | ||
Material | |||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Conduction Board / Plating | Brass / Nickel Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data | |||
Stripping Length mm | 8-10 | ||
Screw / Torque / lbf.in | M5 / 16-18 |
Competitive Advantage:
