PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

    • PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
    • PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
  • PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ500-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 5.00 Poles: 2P-24P
    Voltage: 300v Current: 10a
    Color: Green Screw: M3

    PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection



    Quick Detail



    Pitch: 5.00mm

    Poles: 2P-24P

    Voltage/ Current: 300V/10A

    Wire range: 12-26 AWG

    Materials:  Plastic housing is PA66 (UL94 V-0)

    Operating temperature: -40℃~+105℃

    Clamp cage and terminal is high quality brass or copper

    Screw is  high-quality steel M3



    Spec.



    1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.

    2. It is consisted of plastic housing, clamp cage, terminal and screw.

    3. It can be stacked to be different poles via 2P and 3P,

    4. Wire inlet Direction: 45 90 180degree

    4. Materials:  Plastic housing is PA66(UL94 V-0)  Operating temperature: -40~+105  Clamp cage and terminal is high quality brass or copper  screw is  high-quality steel



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 10



    300 / 10

    Wire Range                       AWG

    12-26



    12-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 10

    400 / 10

    630 / 10

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                 mm

    φ1.4

    Stripping Length                    mm

    6-7

    Screw / Torque                    / lbf.in

    M3 / 4.4-5.3



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

    Applications:



    PCB, Frequency Converters,

    Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,

    Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

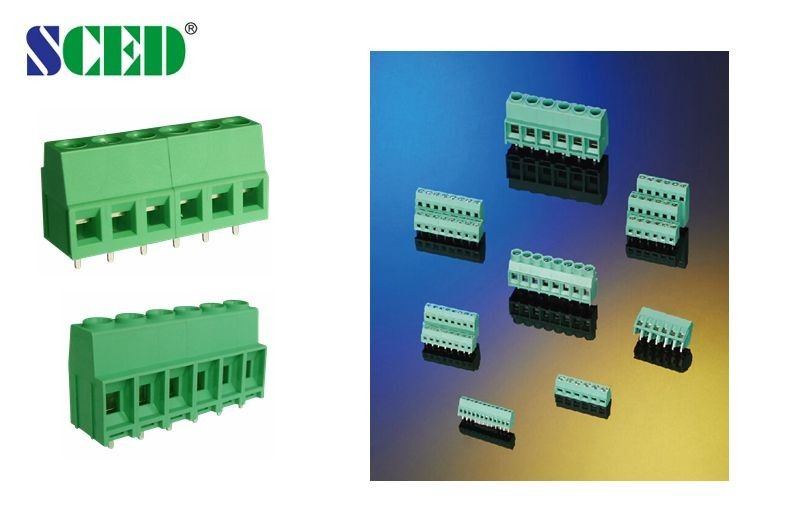

    Drawing Photo and Product photo:

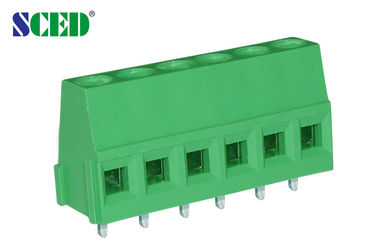

    PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
