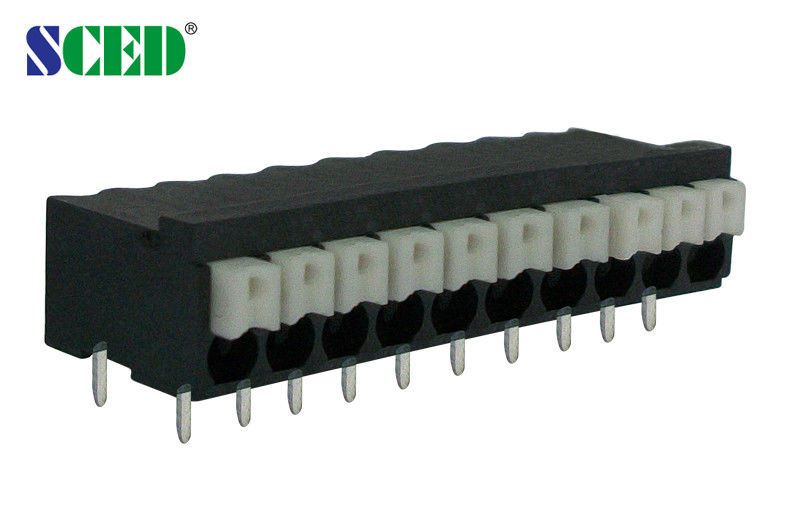

3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button

3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button

    • 3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button
    • 3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button
  • 3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-12V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Item: Spring Terminal Block Rate Voltage: 300V
    Rate Current: 10A Poles: 2-24 Poles
    Color: Black & White Wire Range: 16-22AWG
    Material: LCP Type: Spring Clamp

    3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button



    Quick Detail:



    Rate Voltage: 300V
    Rate Current: 10A
    Poles: 2-24 Poles
    Wire Range:16-22AWG



    Advantage:



    1. With push button

    2. Spring type

    3. LCP Material

    4.Spring: Stainless Steel



    Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10





    Wire Range                               AWG

    16-22





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    160 / 10

    250 / 10

    400 / 10

    Rated Surge Voltage                     KV

    2.5

    2.5

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    LCP / UL94, V-0

    Spring / Plating

    Stainless Steel / -

    Terminal / Plating

    Phosphor Bronze / Tin Plated

    Other Data



    PCB Hole Diameter                mm

    φ1.1

    Stripping Length                    mm

    8-9



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Applications:



    1. PCB, Frequency Converters, Server Site,

    2. Switch, Power Supply, Electric Lighting, Industry Control, Automation,

    3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Drawing

    3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button

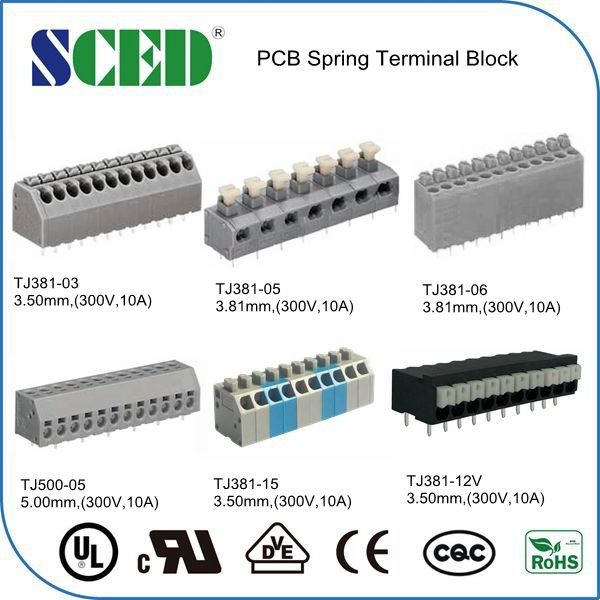

    Other series:



    3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button
