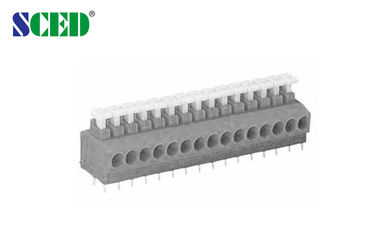

300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button

300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button

    • 300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
    • 300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
  • 300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-05

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Item: Spring Type Material: PA66
    Wire Range: 16-20 AWG Rate Voltage: 300V
    Rate Current: 10A Poles: 1 P Any Poles

    300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button



    Quick Details:



    1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
    2. Diverse wire inlet direction
    3. Compact structure, PA66 material
    4. Simple operating, just press the push button, let the wire inlet
    5. Strong vibration resistance



    Spec.:



    1. Pitch:3.81mm

    2. Rated Voltage/ Current:   300V/10A

    3. Wire Range: 16-20 AWG



    Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10





    Wire Range                               AWG

    16-20





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                V/A

    320 / 10

    320 / 10

    630 / 10

    Rated Surge Voltage                     KV

    4

    4

    4

    Rated Connecting Capacity          mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring / Plating

    Stainless Steel / -

    Terminal / Plating

    Phosphor Bronze / Tin Plated

    Other Data



    PCB Hole Diameter                mm

    φ1.2

    Stripping Length                    mm

    9-10



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Applications:



    PCB,

    Frequency Converters,

    Server Site, Switch,

    Power Supply, etc..



    Drawing Photo:

    300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button

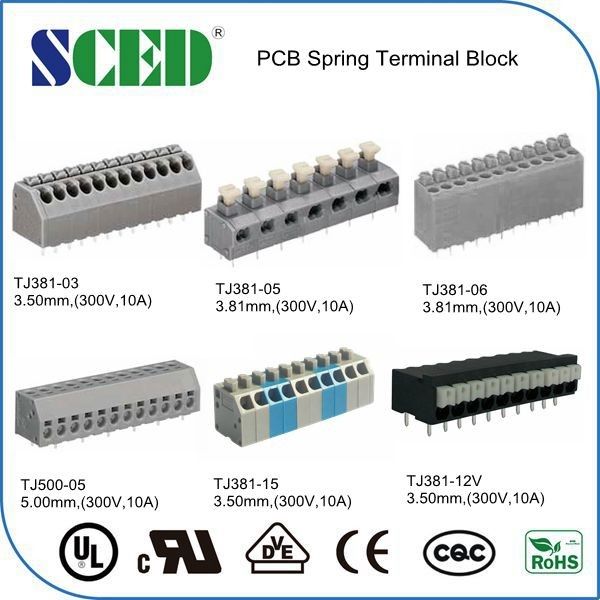

    Spring series



    300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
