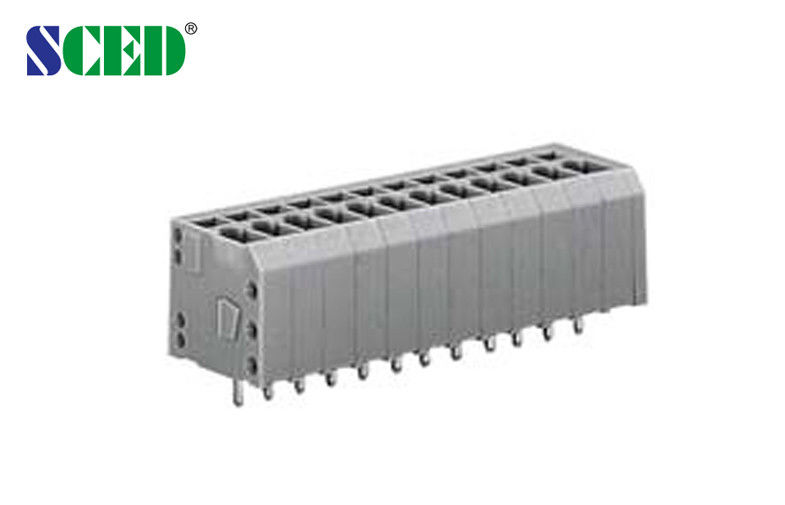

300V 16A Spring Clamp Terminal Block 3.81mm Spacing 2P – 28P Position Screwless

300V 16A Spring Clamp Terminal Block 3.81mm Spacing 2P – 28P Position Screwless

    • 300V 16A Spring Clamp Terminal Block 3.81mm Spacing 2P – 28P Position Screwless
    • 300V 16A Spring Clamp Terminal Block 3.81mm Spacing 2P – 28P Position Screwless
  • 300V 16A Spring Clamp Terminal Block 3.81mm Spacing 2P – 28P Position Screwless

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ381-04

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Item: Spring Type Rate Voltage: 300V
    Rate Current: 16A Poles: 1 P Any Poles
    Material: PA66 Wire Range: 14-26 AWG

    300V 16A Spring Clamp Terminal Block 3.81mm Spacing 2P – 28P Position Screwless



    Quick Details:



    1. Multiple pitch: 3.50mm,3.81mm,5.00mm,5.08mm
    2. Vertical wire inlet
    3. Compact structure
    4. Simple operating
    5. Grey color, other color available



    Tag: spring clamp terminal block, pcb terminal block, screwless terminal block



    Parameter and Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/16





    Wire Range                                AWG

    14-28





    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    200 / 6

    320 / 6

    500 / 6

    Rated Surge Voltage                     KV

    4

    4

    2.5

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Spring / Plating

    Stainless Steel / -

    Terminal / Plating

    Copper / Tin Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.2

    Stripping Length                      mm

    5-6



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand



    Applications:



    PCB, Frequency Converters, Server Site,



    Switch, Power Supply, Electric Lighting, Industry Control, Automation,



    Rail Transportation, Communication, Electric Power,



    Security, Medicine Equipment, Military, Elevator, etc..



    The photo of Drawing:

    300V 16A Spring Clamp Terminal Block 3.81mm Spacing 2P – 28P Position Screwless
