    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TD180-01-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Packaging Details: Standard Export Carton
    Contact Now
    Detailed Product Description
    High Light:

    panel mount terminal blocks

    ,

    feed through terminal blocks

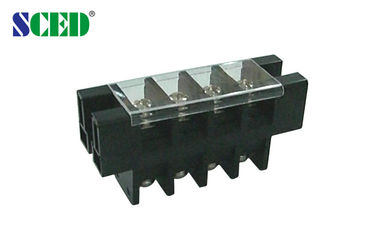

    Through Panel Terminal Connectors / panel mount terminal blocks







    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 180

    300 / 180

    300 / 10

    Wire Range                       AWG

    20-1/0

    20-1/0

    4-20

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    630 / 180

    800 / 180

    1000 / 180

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    8

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Conduction Board / Plating

    Copper / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    14-18

    Screw / Torque                    / lbf.in

    M6 / 20-22



    Through Panel Terminal Connectors / panel mount terminal blocks 0



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:





    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..







    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
