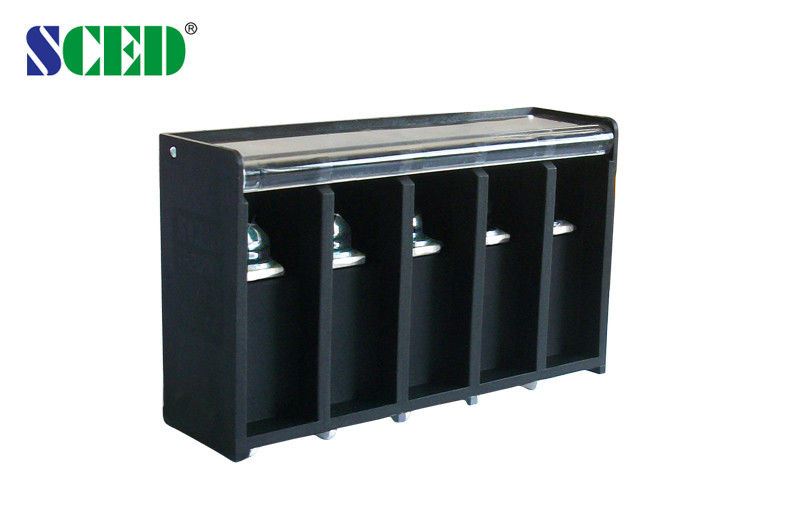

Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors

Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors

    • Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors
    • Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors
  • Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB2000-00-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Pitch: 20.00mm Poles: 2-12 P
    Wire Range: 26-4awg Voltage: 600v
    Current: 75a Color: Black

    Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors



    Quick Details:



    Pitch: 20.00mm

    Poles: 2P-12P

    Voltage/ Current: 600V/75A

    Wire range: 26-4 AWG



    Spec.

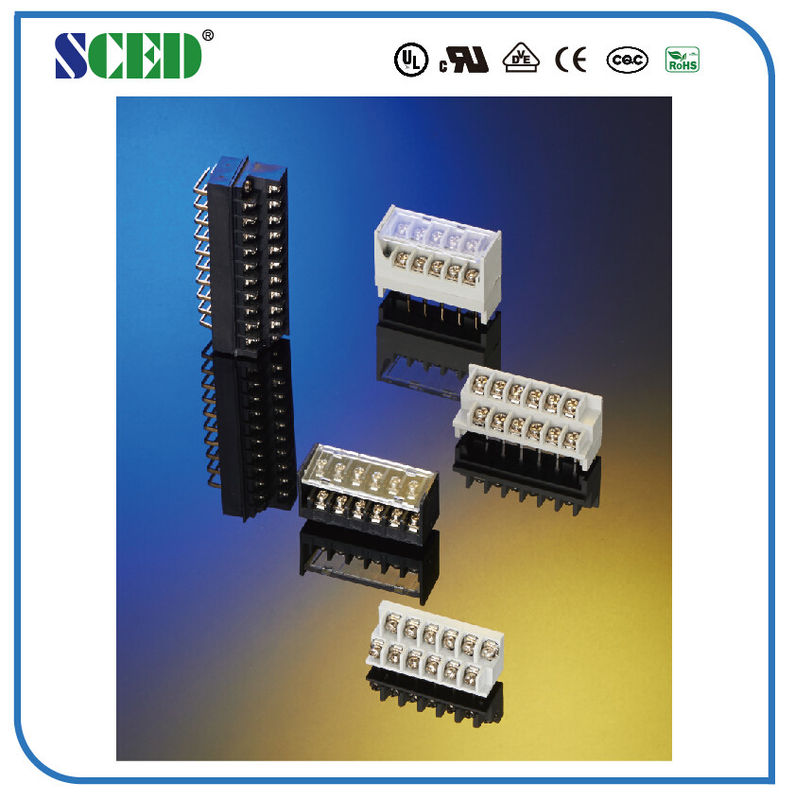

    1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
        13.00mm,13.50mm,14.50mm,20.00mm,21.00mm


    2. With or without cover, one or two rows, from one level to three levels, etc.



    3. Materials:  Plastic housing is PBT(UL94 V-0)


    4. Operating temperature: -40℃~+120℃


    5. Clamp cage and terminal is high quality brass or copper  screw is  high-quality steel



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 75

    600 / 75

    600 / 5

    Wire Range                       AWG

    26-4

    26-4

    26-4

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    1000 / 75

    1000 / 75

    1000 / 75

    Rated Surge Voltage                 KV

    12

    12

    12

    Rated Connecting Capacity           mm2

    16

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                  mm

    2.4x10.4

    Stripping Length                    mm

    16-18

    Screw / Torque                    / lbf.in

    M6 / 18-22



    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Applications:



    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



    Competitive Advantage:



    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand



    Drawing photo:

    Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors
