Place of Origin: | Guangdong China |
Brand Name: | SCED |
Certification: | CE,UL |
Model Number: | TP381P-02 |
Minimum Order Quantity: | 500 Piece/Pieces |
---|---|
Price: | USD 0.048-0.096 Per Pole |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm. |
Delivery Time: | 5-20 Working Days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000000 Pole/Poles per Month |
Pitch: | 3.81mm | Type: | Female Sockets |
---|---|---|---|
Color: | Green | Poles: | 2-22 Poles |
Current: | 8A | Voltage: | 300V |
Wire Range: | 16-30 AWG | Screw: | M2 |
Stripping Length: | 7mm | Clamp Cage: | Brass |
High Light: | 3.81mm Pitch Plug In Terminal Block,7mm Stripping Plug In Terminal Block,Pluggable Terminal Blocks Brass Clamp Cage |

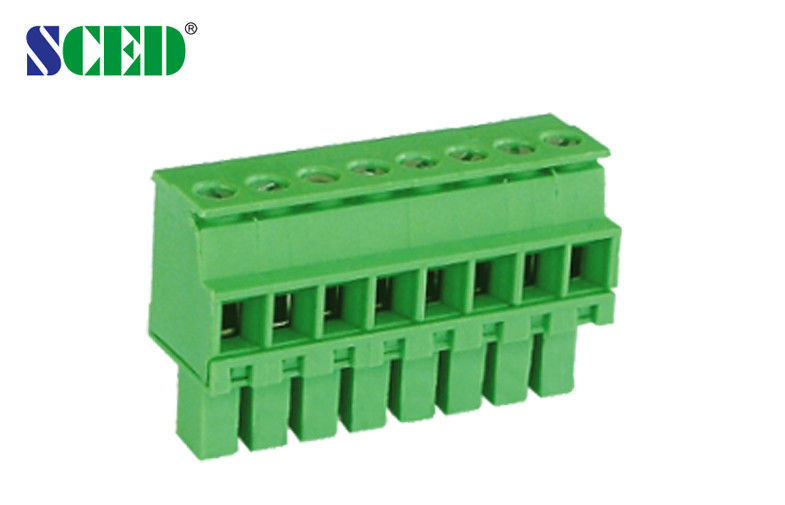

2-22 Poles Plug In Terminal Block M2 Screw Female Sockets Brass Clamp Cage
Detailed product Description:
Plug, Female Sockets, Pitch: 3.81mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
Standard Color: Green.
Other colors are also available, please refer to below How to Order and select the color you want.

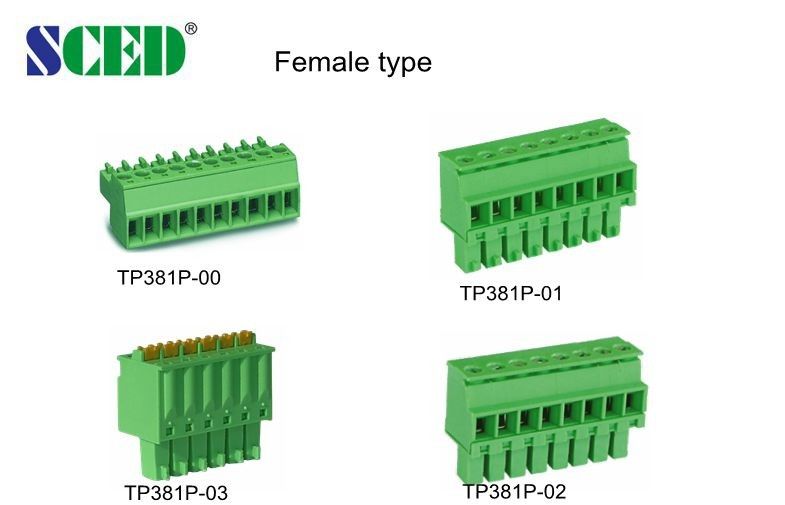

This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05.
How to order:
Applications:
PCB, Medical Equipment, Frequency Converters, Military, Server Site, Elevator, Switch, Communication, Power Supply, Automation, Electric Lighting, Industry Control, Rail Transportation and so on.
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/8 | ||
Wire Range AWG | 16-30 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Contactor / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M2 / 2-2.2 |
Competitive Advantage:
