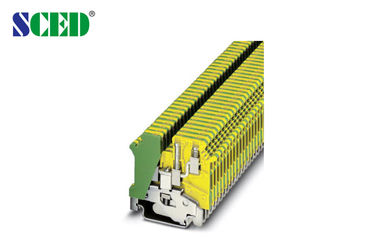

AWG 30 - 12 2.5mm2 Width 5.2mm Din Rail Ground Type Terminal Blocks

AWG 30 - 12 2.5mm2 Width 5.2mm Din Rail Ground Type Terminal Blocks

AWG 30 - 12  2.5mm2  Width 5.2mm  Din Rail Ground Type Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG3N-01

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

2.5mm2  Width 5.2mm  AWG30 - 12  Din Rail Ground Type Terminal Blocks



Detailed product Description:



Terminal Width: 5.2mm, 2.5mm2  AWG:30-12, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks



AWG 30 - 12  2.5mm2  Width 5.2mm  Din Rail Ground Type Terminal Blocks





Parameter and Drawing Specifications:

Description Color Type
Terminal Green & Yellow TR-KG3N-01
Zack Strip White ZB5 SZS0.6x3.5
Rail Material Aluminum / Steel
Dimensions 5.2/50.5
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Wire Fixing Screw / Torque Nm M3 / 0.6-0.8
Center Fixing Screw / Torque Nm M2.5 / 0.5-0.6
Stripping Length mm 8







AWG 30 - 12  2.5mm2  Width 5.2mm  Din Rail Ground Type Terminal Blocks



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
