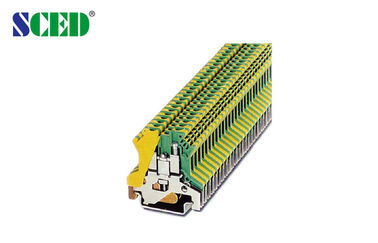

Ground Terminal Blocks Terminal Width 6.2mm AWG 30 - 12 Din Rail Terminal Blocks

Ground Terminal Blocks Terminal Width 6.2mm AWG 30 - 12 Din Rail Terminal Blocks

 Ground Terminal Blocks    Terminal Width 6.2mm   AWG 30 - 12     Din Rail Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG2.5B

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Ground Terminal Blocks Terminal Width 6.2mm AWG 30 - 12 Din Rail Terminal Blocks



Detailed product Description:



Terminal Width: 6.2mm, AWG:30-12, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



 Ground Terminal Blocks    Terminal Width 6.2mm   AWG 30 - 12     Din Rail Terminal Blocks





Parameter and Drawing Specifications:

Description Color Type
Terminal Green & Yellow TR-KG2.5B
Zack Strip White ZB6 SZS0.6x3.5
Rail Material Aluminum / Steel
Dimensions 6.2/42.5
Height (U35: 7.5/U35: 15G 32) mm 42/49.5/47
Wire Fixing Screw / Torque Nm M3 / 0.6-0.8
Center Fixing Screw / Torque Nm M3 / 0.6-0.8
Stripping Length mm 7





 Ground Terminal Blocks    Terminal Width 6.2mm   AWG 30 - 12     Din Rail Terminal Blocks



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
