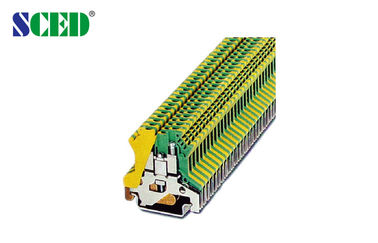

Din Rail Terminal Blocks Terminal Width 4.2mm AWG 30 - 14 Ground Terminal Blocks

Din Rail Terminal Blocks Terminal Width 4.2mm AWG 30 - 14 Ground Terminal Blocks

 Din Rail Terminal Blocks   Terminal Width 4.2mm    AWG 30 - 14    Ground Terminal Blocks

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG1.5N

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Din Rail Terminal Blocks Terminal Width 4.2mm AWG 30 - 14 Ground Terminal Blocks



Detailed product Description:



Terminal Width: 4.2mm, AWG:30-14, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



 Din Rail Terminal Blocks   Terminal Width 4.2mm    AWG 30 - 14    Ground Terminal Blocks





Parameter and Drawing Specifications:

Description Color Type
Terminal Green & Yellow TR-KG1.5N
Zack Strip White ZB4 SZS0.4x2.5
Rail Material Aluminum / Steel
Dimensions 4.2/42.5
Height (U35: 7.5/U35: 15G 32) mm 42/49.5/47
Wire Fixing Screw / Torque Nm M2 / 0.22-0.25
Center Fixing Screw / Torque Nm M2 / 0.22-0.25
Stripping Length mm 7





 Din Rail Terminal Blocks   Terminal Width 4.2mm    AWG 30 - 14    Ground Terminal Blocks



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
